Szczegóły Produktu:
Zapłata:
|
| Tworzywo: | Drut ze stali węglowej | Otwarcie siatki: | 12 × 12, 20 × 20, 25 × 25, 12 × 25 mm |
|---|---|---|---|
| Średnica drutu: | 0,4 mm - 1,5 mm | Szerokość rolki: | 0,4 m, 0,5 m, 0,6 m, 0,8 m, 1,0 m, 1,25 m, 1,5 m, 2,0 m |
| Długość rolki: | 15M, 30M, 50M itd | Obróbka powierzchniowa: | Cynkowane ogniowo lub cynkowane elektrycznie |
| Numer modelu: | xx-01001 | Aplikacja:: | Siatka ogrodzeniowa |
| E-mail: | devin@industrialmetalmesh.com | WhatsAPP: | +8615369013183 |
| Podkreślić: | stainless steel welded wire mesh,welded wire mesh for construction,high-quality welded wire mesh |
||

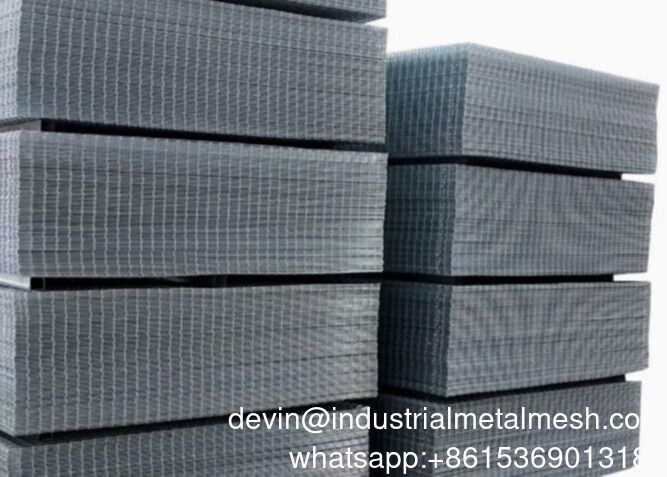

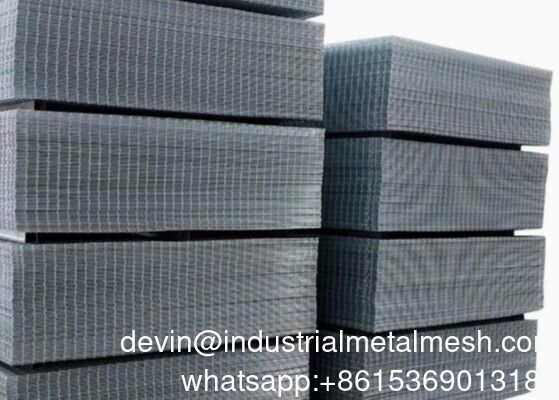

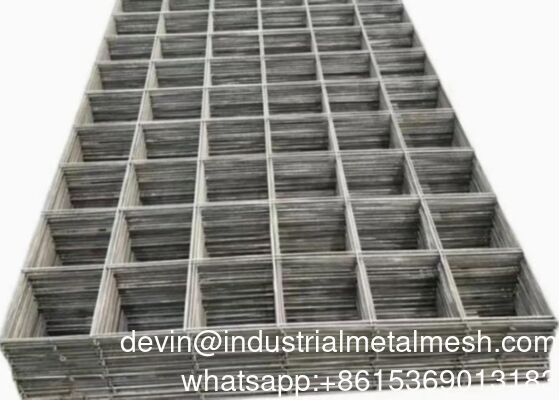

Stainless Steel Welded Wire Mesh for High-Quality Construction
Product Description:
wire diameter: 22guage, 20guage, 0.7mm, 1mm, 1.2mm, 1.5mm, 2mm
length:30m,20m,2.4m,2m,or as per you request
width: 1m,48",24" 3',4',5',
Mesh Opening Size:1/2", 1/4", 1", 3/8", 1 1/2", 2", 3/4", 1"*2" etc
Roll Size: 3′*100′, 4′*100′. 3FT*100FT, 4FT*100FT, 4FT*50FT
Surface treatment: Elec-galvanized, hot-dip galvanized, pvc coated, powder coating etc.
Feature: The structure of this kind of wire mesh is strong, lasting and rust-resistant. Galvanized welded wire mesh is galvanized after welding.
Application: They are used in industry and agriculture building, transportation and mining for all such purposes as poultry houses, egg baskets, runway enclosures, draining rack, fruit drying screen, fence.
| welded wire mesh rolls | ||
| Opening | Wire diameter | Available Width |
| 1/4" x 1/4" | 0.45mm-0.7mm | 300mm-1830mm |
| 3/4" x 3/4" | 0.7mm-2.0mm | 300mm-1830mm |
| 3/8" x 3/8" | 0.7mm-1.1mm | 300mm-1830mm |
| 5/8" x 5/8" | 0.8mm-1.2mm | 300mm-1830mm |
| 1/2" x 1/2" | 0.45mm-1.6 mm | 300mm-1830mm |
| 1" x 1" | 0.7mm-3.0mm | 300mm-2000mm |
| 1" x 1/2" | 0.8mm-1.6mm | 300mm-1828mm |
| 1-1/2" x 1-1/2" | 0.7mm-3.5mm | 300mm-1828mm |
| 1" x 2" | 1.6mm-2.1mm | 300mm-1828mm |
| 2" x 2" | 0.7mm-4.0mm | 300mm-2500mm |
| 2" x 3" | 1.5mm-3.5mm | 300mm-2000mm |
| 2" x 4" | 2.0mm-4.0mm | 300mm-1828mm |
| 3" x 3" | 1.0mm-4.5mm | 300mm-2500mm |
| 3" x 4" | 1.5mm-4.5mm | 300mm-2000mm |
| 4" x 4" | 1.0mm-4.5mm | 300mm-2500mm |
| 5" x 5" | 2.5mm-4.5mm | 300mm-2500mm |
| 6" x 6" | 2.5mm-4.5mm | 300mm-2500mm |
| Welded Wire Mesh Panels | ||
| Opening | Wire diameter | Available width |
| 1/2" x 1/2" | 0.45mm-2.0mm | 100mm-1830mm |
| 1" x 1" | 0.7mm-3.5mm | 100mm-2000mm |
| 1" x1/4" | 0.45mm-4.0mm | 100mm-2000mm |
| 1x 1/2" | 0.45mm-4.0mm | 100mm-3600mm |
| 2" x 2" | 0.7mm-6.0mm | 100mm-3600mm |
| 3" x 3" | 1.0mm-7.0mm | 100mm-3600mm |
| 4" x 4" | 1.0mm-8.0mm | 100mm-3600mm |
| 5" x 5" | 2.5mm-9.0mm | 100mm-3600mm |
| 6" x 6" | 2.5mm-10.0mm | 100mm-3600mm |
| Specification List of Welded Wire Mesh: | ||
| Opening | Wire Diameter<BWG> | |
| In inch | In metric unit(mm) | |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
| Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request. |
||
Applications:
Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
