Szczegóły Produktu:
Zapłata:
|
| Tworzywo: | Drut ze stali węglowej | Otwarcie siatki: | 12 × 12, 20 × 20, 25 × 25, 12 × 25 mm |
|---|---|---|---|
| Średnica drutu: | 0,4 mm - 1,5 mm | Szerokość rolki: | 0,4 m, 0,5 m, 0,6 m, 0,8 m, 1,0 m, 1,25 m, 1,5 m, 2,0 m |
| Długość rolki: | 15M, 30M, 50M itd | Obróbka powierzchniowa: | Cynkowane ogniowo lub cynkowane elektrycznie |
| Numer modelu: | xx-01001 | Aplikacja:: | Siatka ogrodzeniowa |
| E-mail: | devin@industrialmetalmesh.com | WhatsAPP: | +8615369013183 |
| Podkreślić: | stainless steel welded mesh,construction wire protecting mesh,welded wire mesh with warranty |
||

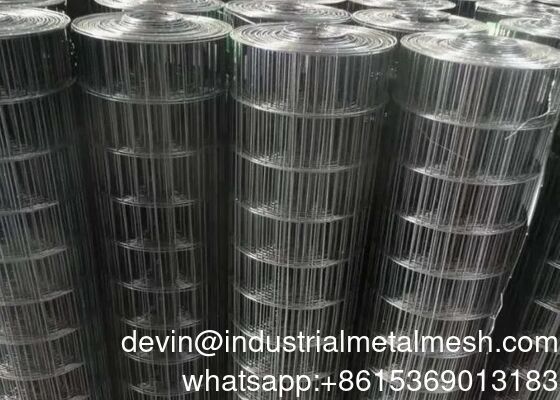

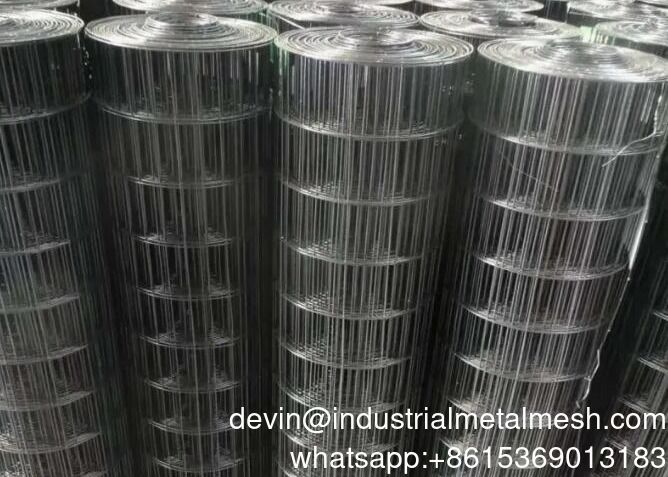

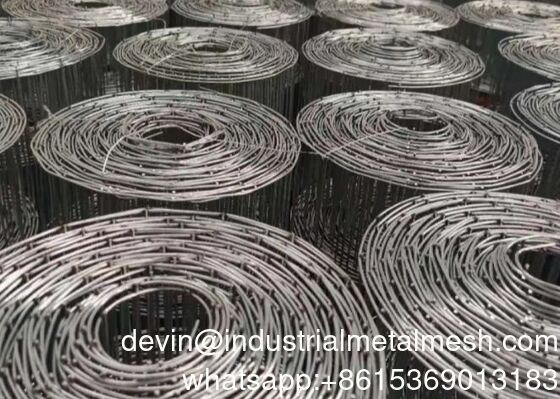

Hot Sale Welded Mesh Stainless Steel Protecting Mesh Construction Wire
Product Description:
wire diameter: 22guage, 20guage, 0.7mm, 1mm, 1.2mm, 1.5mm, 2mm
length:30m,20m,2.4m,2m,or as per you request
width: 1m,48",24" 3',4',5',
Mesh Opening Size:1/2", 1/4", 1", 3/8", 1 1/2", 2", 3/4", 1"*2" etc
Roll Size: 3′*100′, 4′*100′. 3FT*100FT, 4FT*100FT, 4FT*50FT
Surface treatment: Elec-galvanized, hot-dip galvanized, pvc coated, powder coating etc.
Feature: The structure of this kind of wire mesh is strong, lasting and rust-resistant. Galvanized welded wire mesh is galvanized after welding.
Application: They are used in industry and agriculture building, transportation and mining for all such purposes as poultry houses, egg baskets, runway enclosures, draining rack, fruit drying screen, fence.
|
Opening (In inch)
|
In metric unit(mm)
|
Wire Diameter(BWG)
|
|
1/4" x 1/4"
|
6.4mm x 6.4mm
|
22,23,24
|
|
3/8" x 3/8"
|
10.6mm x 10.6mm
|
19,20,21,22
|
|
1/2" x 1/2"
|
12.7mm x 12.7mm
|
16,17,18,19,20,21,22,23
|
|
5/8" x 5/8"
|
16mm x 16mm
|
18,19,20,21
|
|
3/4" x 3/4"
|
19.1mm x 19.1mm
|
16,17,18,19,20,21
|
|
1" x 1/2"
|
25.4mm x 12.7mm
|
16,17,18,19,20,21
|
|
1-1/2" x 1-1/2"
|
38mm x 38mm
|
14,15,16,17,18,19
|
|
1" x 2"
|
25.4mm x 50.8mm
|
14,15,16
|
|
2" x 2"
|
50.8mm x 50.8mm
|
12,13,14,15,16
|
| Specification List of Welded Wire Mesh: | ||
| Opening | Wire Diameter<BWG> | |
| In inch | In metric unit(mm) | |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
| Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request. |
||
Applications:
Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
