Szczegóły Produktu:
Zapłata:
|
| Technika: | Tkane | Tworzywo: | Drut ze stali nierdzewnej, 316,304 |
|---|---|---|---|
| Styl splotu: | Zwykły/skośny splot | Nazwa produktu: | Kwadratowa siatka tkana z mąki 100 mikronów ze stali nierdzewnej 4X4 |
| Średnica drutu: | Wymóg | Szerokość: | Zwykle 1M |
| E-mail: | devin@industrialmetalmesh.com | WhatsAPP: | +8615369013183 |
| Podkreślić: | 304 stainless steel woven wire mesh,316 stainless steel filter mesh,monel alloy woven wire mesh |
||

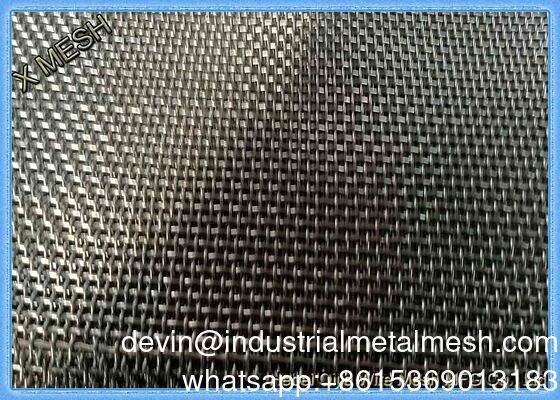

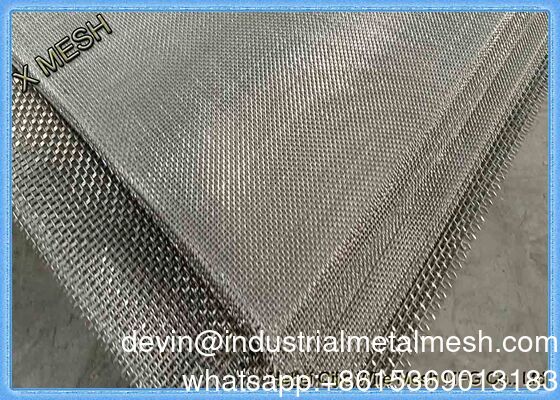

304 316 904L 430 Stainless Steel Aluminum Copper Nickel Titanium Silver Tungsten Molybdenum Monel Inconel Nichrome Hastelloy 2-3500 Mesh Filter Woven Wire Mesh
| Woven Wire Mesh Overview We have the most complete range of material grades and sizes to customize woven wire mesh. |
|
| Stainless Steel Grade: | SS304, 316, 904L, 430, 310s, 2205, etc |
| Aluminum Alloy: | 6061, 5056, 5052 |
| Copper: | Pure Copper, Brass, Bronze |
| Special Materials: | Nickel, Titanium, Silver, Tungsten, Molybdenum, Monel, Inconel, Nichrome, Hastelloy |
| Weave Types: | Plain Weave, Twill Weave, Plain Dutch Weave, Twill Dutch Weave, Reverse Dutch Weave, etc |
| Wire Diameter Range: | 0.016-0.5mm |
| Width Range: | Maximum 6m, usually the width is 1m |
| Length Range: | Maximum 50m, usually the length is 30m/roll |
| Mesh Type: | Rolls and sheets are available |
| Production Standards: | ASTM E2016 - 20 |
|
Name
|
stainless steel wire mesh
|
|
Material
|
304 316L 310s 904Letc.
|
|
Wire diameter
|
0.02-2.0mm
|
|
Mesh size
|
2 --635mesh/1 inch
|
|
Width
|
1m 1.2m 1.3m 1.5m(Can be customized)
|
|
Length
|
30m or according to you nedds
|
|
Weaving type
|
Plain/Dutch/twill weave
|
Other things you need to know about 316 stainless steel mesh
When ordering the 316L stainless steel wire cloth, please specify the mesh count, wire diameter, hole size, weave type, mesh width, and length.
For example:
SS316L Screen Mesh 120 x 3′ x 100′ x 0.08mm Inquiry
SS316L Screen Mesh 100 x 3′ x 100′ x 0.1mm Inquiry.
More specifically such as:
Stainless steel mesh 316L, DTW 200/600, 40inch, 30meter , 1 roll
SUS 316L mesh, DTW 10 micron 200 x 1400 mesh, 0.07/ 0.04mm, size: 1m x 30m, 1 roll
2. Deep processing services
The wire mesh ss316 can be cut into different shapes of sheets, It can also be processed into filter tubes and filter caps.
For example, SS316L Screen Mesh 20 x 4 feet x 6 feet Long sheet, or SS316L Screen Mesh 60 x 59mm diameter Circular.
It can also be slit, for example, 200 mesh ss316 wire mesh can slit into 500mm width, and there will be 2 cutting rolls from 1m width 200 mesh 316 stainless steel mesh.
3. Detail application example
325 mesh 0.035mm wire diameter twill weave 316L stainless steel mesh used for stainless steel filter cartridge production.
300 mesh, 350 mesh, 400 mesh, 500 mesh Plain weave 316L stainless steel wire mesh used as screen printing mesh in Glass, ceramics, metals, plastics, rubber, and printed circuits industries.
24/110 mesh Dutch weave 316L stainless steel mesh used in the production of sunflower oil.
