Szczegóły Produktu:
Zapłata:
|
| Skład chemiczny: | Fe, C, Si, Mn, S, P | Stop lub nie: | Niestopowe |
|---|---|---|---|
| Możliwość rozwiązania projektu: | projektowanie graficzne, projektowanie modeli 3D, kompleksowe rozwiązania dla projektów | Aplikacja: | Willa |
| Obróbka powierzchniowa: | Cynkowanie ogniowe, malowanie lub nieobrobione | Długość rusztu: | 1000 mm |
| Szerokość rusztu: | 800mm | Szerokość pręta nośnego x grubość: | 25x3mm |
| Kształt pręta nośnego: | Zwykła, ząbkowana krata stalowa typu I | Kształt poprzeczki: | okrągły, skręcony, kształt paska |
| Rozmiar siatki: | 30x100mm | E-mail: | devin@industrialmetalmesh.com |
| WhatsAPP: | +8615369013183 | ||
| Podkreślić: | Q235 galvanized steel trench grating,Q345 square steel drain grating,galvanized steel lot trench grating |
||

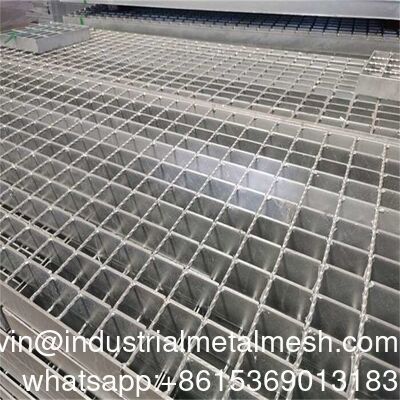

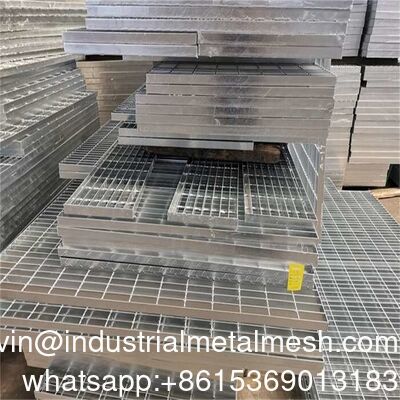

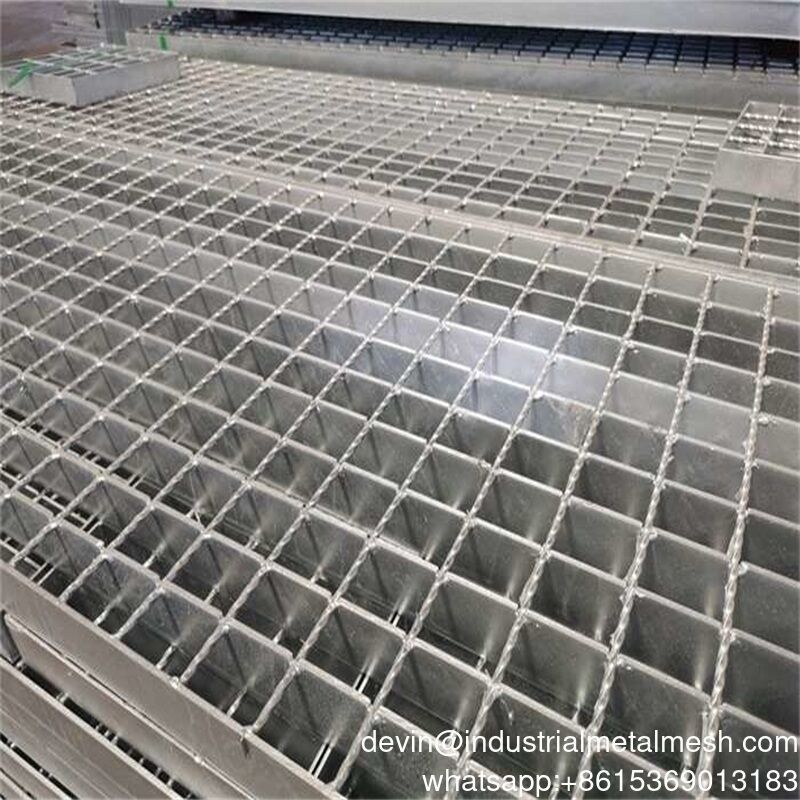

Q235/Q345 Material Square Design Galvanized Steel Drain Grating for Lot Trench
|
Learn more about the main components of metal bar grating
|
|
|
Material
|
Carbon Steel , Stainless Steel
|
|
surface treatment
|
Hot dip galvanizing,Painting,Spray coating,self colour
|
|
Product Process
|
Fully automatic pressure welding , manual welding
|
|
Bearing Bar
|
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6,
75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc |
|
US standard: 25.4 x 4.8 mm 31.8 x 4.8 mm 38.1 x 4.8 mm 25.4 x 6.4 mm 31.8 x 6.4 mm 38.1 x 6.4 mm 25.4 x 3.2 mm 31.8 x 3.2 mm 38.1 x 3.2 mm etc
|
|
|
Bearing Bar Pitch
|
12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
|
|
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc
|
|
|
Twisted Cross Bar Pitch
|
38.1, 40, 50, 60, 76, 80, 100, 101.6, 120mm, etc.
|
|
Steel Grade
|
ASTM A36, A1011, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel, etc
|
|
Grating Standard
|
China: YB/T 4001.1-2007
USA: ANSI/NAAMM(MBG531-88) UK: BS4592-1987 Australia: AS1657-1985 Japan: JIS Russia:GOST |
|
Russian Standard
|
|
|
Common spacing of load-bearing flat steel:
|
11, 22, 33, 44
|
|
Common spacing for connecting flat steel:
|
11, 22, 33, 66
|
|
Surface treatment
|
Plating thickness ≥70 μm
|
|
Custom specifications available upon request
|
|
Advantages:
high strength, anti-slip, ventilation and light transmission properties.
Packaging Details
Standard Grating Packing Method:
1. Bandage and Paperboard: Generally applies to neat steel plate;
Package Type: 2. Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength;
3. Steel Pallet: Traditional export packing.
Steel grating is widely used in the following fields:
1. Petrochemical, power and metallurgy, sewage treatment and other industrial fields.
2. Drainage systems, stairs and railings, commercial decoration and other municipal and architectural fields.
3. Bridges and tunnels, ports and ships and other transportation and marine engineering.
4. Garbage treatment plants, agricultural facilities and other environmental protection and agricultural fields.
