Szczegóły Produktu:
Zapłata:
|
| Tworzywo: | Drut ze stali węglowej, drut ocynkowany | Otwarcie siatki: | 1"x1",1-1/2"x1-1/2",2"x2",2"x1"itp. |
|---|---|---|---|
| Średnica drutu: | 0,4 mm - 6,0 mm | Rozmiar panelu: | 1,2x2,4M,1,2x3,0M,1,8x3,6M itp. |
| Obróbka powierzchniowa: | Powłoka PCV | Wysokość słupka: | 1,1–3,0 mln |
| E-mail: | devin@industrialmetalmesh.com | WhatsAPP: | +8615369013183 |
| Podkreślić: | metal 3D curved wire mesh fence,security curved metal fence,factory direct supply wire mesh fence |
||

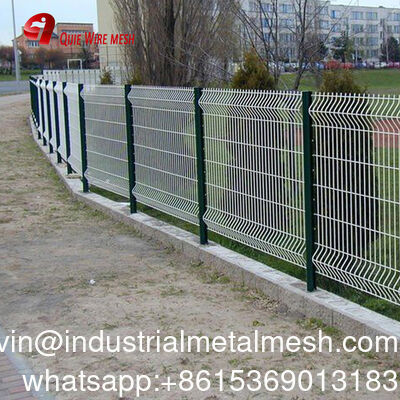

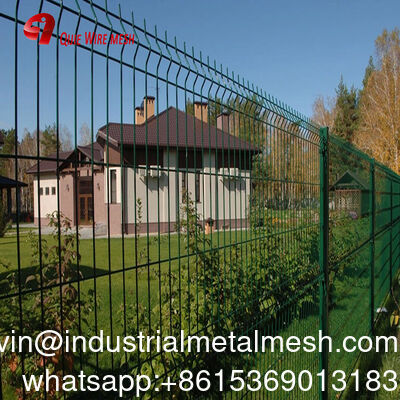

Factory Directly Supply Metal 3D Curved Wire Mesh Fence for Security Use
Welded Mesh Fencing is an economical and durable fencing type that suits a wide variety of applications.
The fence panels are typically constructed with rolled top and bottom profiles, which adds strength and durability to the fence panels, without adding additional weight. The design means the panels remain light weight and cost effective, which make weld mesh panels ideal for multiple applications.
Most commonly welded mesh panels are used for boundary fencing and secured compounds due to the added strength of the welded mesh design and heavier wire diameters, making it difficult to cut or damage.
| Specification of Triangle Bend Fence | |||||||
| Mesh Opening |
Wire Thickness |
Panel Width |
Panel Height |
Number of Folds |
Post Type | ||
| 50x100mm 50x150mm 50x200mm 55x200mm 75x150mm etc. |
3.0mm or 3.5mm or 4.0mm or 4.50mm or 5.00mm |
2.0m 2.50m 2.9m |
630mm | 2 | Round Post 48x1.5/2.0mm 60x1.5/2.0mm |
Square Post(SHS) 50X50x1.5/2.0mm 60x60x1.5/2.0mm 80x80x1.5/2.0mm |
Rectangular Post(RHS) 40x60x1.5/2.0mm 40x80x1.5/2.0mm 60x80x1.5/2.0mm 80x100x1.5/2.0mm |
| 830mm | 2 | ||||||
| 1030mm | 2 | ||||||
| 1230mm | 2 | ||||||
| 1430mm | 2 | ||||||
| 1530mm | 3 | ||||||
| 1630mm | 3 | ||||||
| 1730mm | 3 | ||||||
| 1830mm | 3 | ||||||
| 1930mm | 3 | ||||||
| 2030mm | 4 | ||||||
| 2230mm | 4 | ||||||
| 2430mm | 4 | ||||||
| Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coated | |||||||
| Color: RAL 6005 green, RAL 7016 gray, RAL 9005 black,All RAL color can be customized | |||||||
| Note: The fence can be customized according to your required if above specifcation is not satisfied with you. |
|||||||
Tips:
You can only tell us fence height and total length you need, we will give you a suitable suggestions.
| 3D curved PVC coated galvanized welded iron wire mesh fence panel | |
| material | steel iron wire,galvanized wire |
| surface treatment | PVC coated ,powder coated |
| color | blue,green,black,white,yellow,grey,etc. |
| wire diameter | 4.5mm,5mm,6mm |
| hole size | 50x200mm,75x200mm |
| fence height | 1.5m,1.6m,1.8m,2m,2.1m |
| fence length | 2m,2.5m |
| post | peach type post,square type post |
