Szczegóły Produktu:
Zapłata:
|
| Tworzywo: | Drut ze stali węglowej | Otwarcie siatki: | 12 × 12, 20 × 20, 25 × 25, 12 × 25 mm |
|---|---|---|---|
| Średnica drutu: | 0,4 mm - 1,5 mm | Szerokość rolki: | 0,4 m, 0,5 m, 0,6 m, 0,8 m, 1,0 m, 1,25 m, 1,5 m, 2,0 m |
| Długość rolki: | 15M, 30M, 50M itd | Obróbka powierzchniowa: | Cynkowane ogniowo lub cynkowane elektrycznie |
| Numer modelu: | xx-01001 | Aplikacja:: | Siatka ogrodzeniowa |
| E-mail: | devin@industrialmetalmesh.com | WhatsApp: | +8615369013183 |
| Podkreślić: | galvanized steel wire mesh panels,welded wire mesh panels,steel net wire mesh |
||

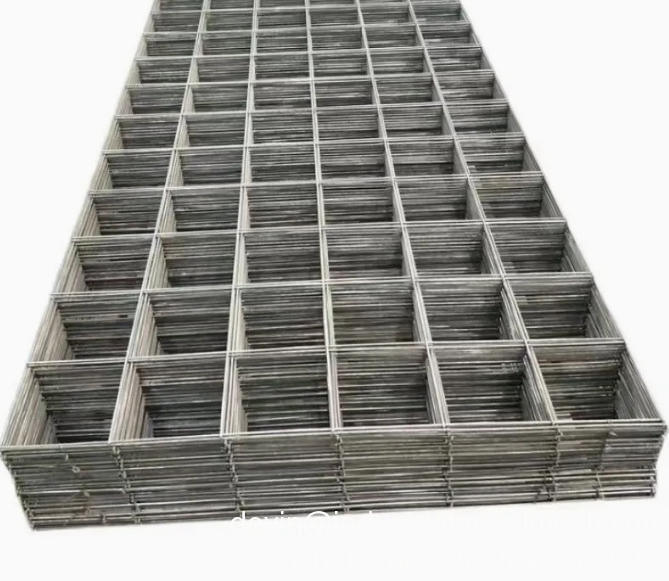

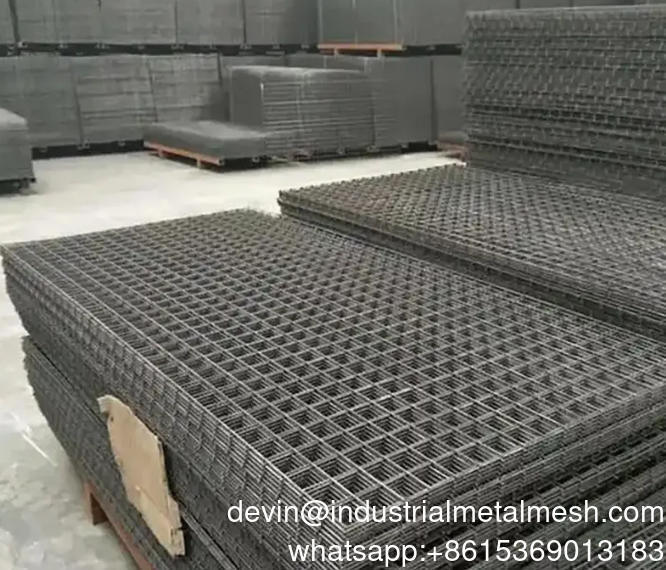

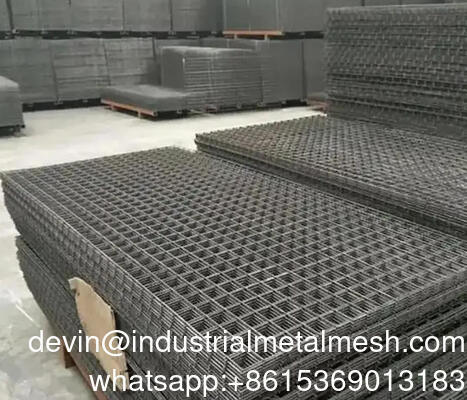

Steel Net Wire Mesh Panel Galvanized Welded Wire Mesh Panels
1.Material: Low carbon steel wire;galvanized wire,PVC coated.
2.Feature:Corrosion resistance, aging resistance, sunshine resistance and weather resistance.
3.Welding Type: Electro galvanized before welded wire mesh ,Electro galvanized after welded wire mesh,hot dip galvanized before welded wire mesh ,hot dip galvanized after welded wire mesh ,PVC coated welded wire mesh.
|
Wire Diameter(mm)
|
Aperture (mm)
|
Width(m)
|
Length
|
|
|
Inch
|
MM
|
|||
|
2.0mm-3.2mm
|
1"
|
25.4
|
0.914m-1.83m
|
The length does not limit
|
|
2.0mm-4.5mm
|
2"
|
50.8
|
0.914m-2.75m
|
|
|
2.0mm-6.0mm
|
3"
|
70.2
|
0.914m-2.75m
|
|
|
2.0mm-6.0mm
|
4"
|
101.6
|
0.914m-2.75m
|
|
|
2.0mm-6.0mm
|
5"
|
127
|
0.914m-2.75m
|
|
|
2.0mm-6.0mm
|
6"
|
152.4
|
0.914m-2.75m
|
|
|
2.0mm-6.0mm
|
7"
|
177.8
|
0.914m-2.75m
|
|
|
2.0mm-6.0mm
|
8"
|
203.2
|
0.914m-2.75m
|
|
Features of Welded Wire Mesh
Easily workable
Solid construction
Extremely versatile
Easy to install
Lightweight
Can have a low resistance to wind loads
Easily cut to fit
Applications of Welded Wire Mesh
Welded wire mesh's combination of low cost, ease of use, and versatility make it a popular choice for many different applications.
1. Fences and gates: You'll find welded wire mesh fences and gates installed at residences and all types of commercial and industrial
properties.
2. Architectural uses such as building facades: Although welded wire fabric is known for its strength and durability, architects and designers
often use it to enhance aesthetic appeal.
3. Architectural Wire Mesh for Green Building Design: Using welded wire mesh can help achieve LEED(Leadership in Energy and Environmental
Design) credits and certification.
4. Infill panels for railings and divider walls: Woven wire infill panels are used often as partitions or divider walls due to its clean and
sometimes modern look.
5. Animal control: Farmers, ranchers, and animal control professionals use fencing made from welded wire mesh to contain livestock and
stray animals.
6. Screens for doors and windows: Welded wire mesh screens provide a sturdy material and effective insect control when installed in windows.
7. Machine guards: Use welded wire cloth guards for industrial machinery.
8. Shelving and partitions: Welded wire mesh's strength and stability enable it to serve as shelving for storing heavy products and as partitions
that promote visibility.
9. Behind-the-scenes use in plumbing, walls, and ceilings: Wire mesh provides support for pipes installed in the walls and ceilings of a structure.
10. Gardens to keep bugs away from their plants and vegetables: Mesh with a low open area percentage serves as a screen that prevents
insects from destroying plants.
11. Agriculture: To serve as barrier fencing, corn cribs, livestock shade panels, and temporary holding pens.
