Szczegóły Produktu:
Zapłata:
|
| Tworzywo: | Drut ze stali węglowej | Otwarcie siatki: | 12 × 12, 20 × 20, 25 × 25, 12 × 25 mm |
|---|---|---|---|
| Średnica drutu: | 0,4 mm - 1,5 mm | Szerokość rolki: | 0,4 m, 0,5 m, 0,6 m, 0,8 m, 1,0 m, 1,25 m, 1,5 m, 2,0 m |
| Długość rolki: | 15M, 30M, 50M itd | Obróbka powierzchniowa: | Cynkowane ogniowo lub cynkowane elektrycznie |
| Numer modelu: | xx-01001 | Aplikacja:: | Siatka ogrodzeniowa |
| E-mail: | devin@industrialmetalmesh.com | WhatsApp: | +8615369013183 |
| Podkreślić: | black galvanized welded wire mesh,custom welded wire mesh panels,factory price wire mesh panels |
||

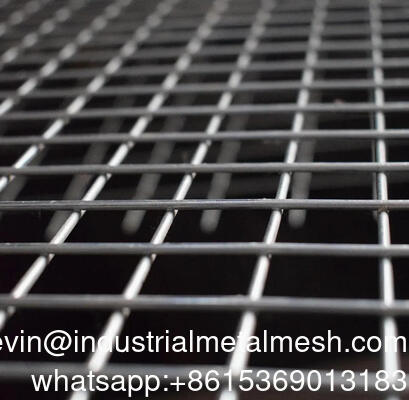

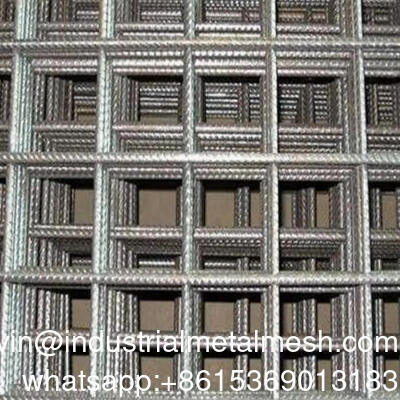

Black Galvanized Welded Wire Mesh Panel Factory Customized Price
This kind of welded wire mesh panel is made with plain steel wire welded together in square opening, then going through the hot dipped zinc coating process. Application: Suitable product for constructing animal cages, enclosure works, fabricating of wire containers and baskets, grills, partitions, machine protection fences, gratings and other construction applications. Hot dipped zinc coated welded wire mesh panel is made in accordance to English Standard normally in regard to the production and zinc coating. The finished welded mesh offer flat and uniform surface, firm structure, good integrity. It offers the most excellent anti-corrosion resistance among all the steel wire mesh products, it is also the most versatile wire mesh due to its wide application in different fields.
|
Specification Of Welded Wire Mesh Panel
|
|||
|
Opening
|
Wire diameter
|
||
|
Inch
|
mm
|
BWG
|
mm
|
|
1" × 1"
|
25mmx25mm
|
14# - 11#
|
2.0mm - 3mm
|
|
2" × 1"
|
50mmx25mm
|
14# - 8#
|
2.0mm - 4mm
|
|
2" × 2"
|
50mmx50mm
|
14# - 8#
|
2.0mm - 4mm
|
|
3" × 2"
|
75mmx50mm
|
14# - 6#
|
2.0mm - 5mm
|
|
3" × 3"
|
75mmx75mm
|
14# - 6#
|
2.0mm - 5mm
|
|
4" × 2"
|
100mmx50mm
|
14# - 4#
|
2.0mm - 6mm
|
|
4" × 4"
|
100mmx100mm
|
14# - 4#
|
2.0mm - 6mm
|
|
5" × 5"
|
125mmx125mm
|
14# - 4#
|
2.0mm - 6mm
|
|
6" × 6"
|
150mmx150mm
|
14# - 4#
|
2.0mm - 6mm
|
|
Material: Low carbon steel wire
|
|||
|
Surface treatment: Electro Galvanized, Hot dipped galvanized, PVC coated, Powder coated
|
|||
|
Note: Special size and specifications can be made according to customers requires.
|
|||
Application:

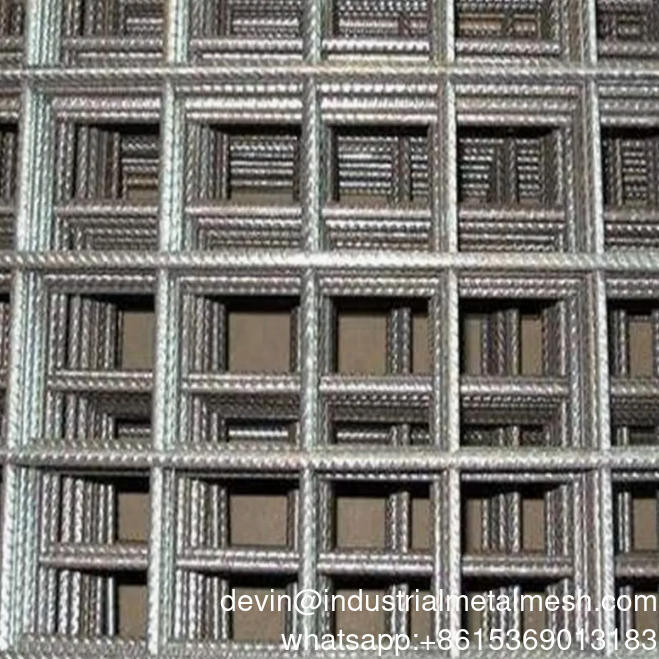

In construction in the form of reinforcement brick mesh, welded bar gratings or wire mesh sandwich construction. A wire mesh sandwich construction which comprises an array of line wires, an array of cross wires overlying said array of line wires and a barrier material disposed between the array of line wires and the array of cross welded wires. The array of line wires is joined to said array of cross wires at the points of intersection and through the barrier material, thus securing the barrier material between the array of line wires and the array of cross wires.
