Szczegóły Produktu:
Zapłata:
|
| Tworzywo: | Drut ze stali węglowej | Otwarcie siatki: | 12 × 12, 20 × 20, 25 × 25, 12 × 25 mm |
|---|---|---|---|
| Średnica drutu: | 0,4 mm - 1,5 mm | Szerokość rolki: | 0,4 m, 0,5 m, 0,6 m, 0,8 m, 1,0 m, 1,25 m, 1,5 m, 2,0 m |
| Długość rolki: | 15M, 30M, 50M itd | Obróbka powierzchniowa: | Cynkowane ogniowo lub cynkowane elektrycznie |
| Numer modelu: | xx-01001 | Aplikacja:: | Siatka ogrodzeniowa |
| E-mail: | devin@industrialmetalmesh.com | WhatsApp: | +8615369013183 |
| Podkreślić: | welded wire mesh panel for gridwall,gridwall wire mesh panel,metal wire mesh panel with warranty |
||

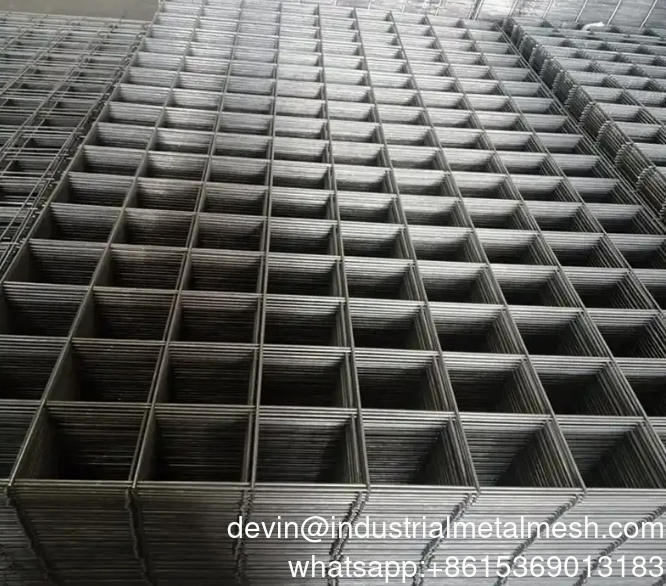

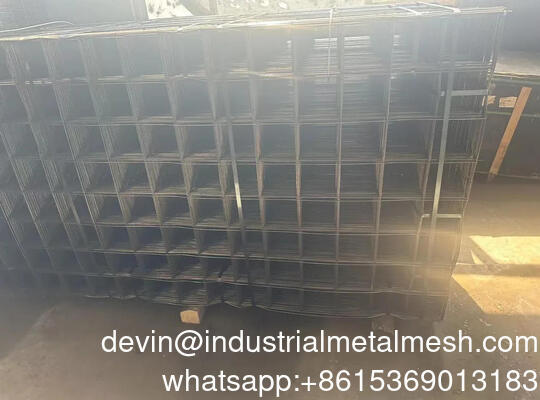

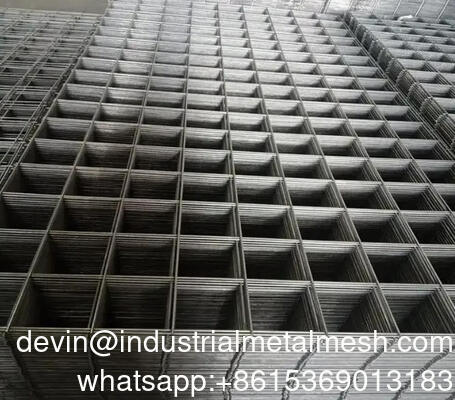

Welded Wire Mesh Panel Wire Panel for Gridwall
Material Quality: Made from robust steel, available with optional galvanized or PVC coatings for enhanced corrosion resistance in harsh environments.
Custom Design: Panels feature square holes for optimal airflow and visibility, with sizes fully customizable to fit your project needs.
Technical Advantages: High tensile strength ensures longevity, while uniform welding enhances structural integrity for safety-critical uses.
Additional Services: Cutting and punching services allow for exact shapes and dimensions, reducing on-site labor and waste.
Below is a table summarizing common specifications:
Technicial data for wire mesh decking
| Item No. | Specification (mm) | Wire dia (mm) | Mesh (mm) | Loading capacity (kg) | ||
| L | W | H | ||||
| 01 | 1350 | 1200 | 40 | 6.4 | 50x50 | 500-1000 |
| 02 | 1350 | 1000 | 40 | 6.0 | 50x50 | 500-1000 |
| 03 | 1200 | 1000 | 40 | 5.5 | 50x50 | 500-1000 |
| 04 | 1150 | 1000 | 40 | 5.5 | 50x100 | 400-800 |
| 05 | 1000 | 1000 | 40 | 5.0 | 50x100 | 300-600 |
| 06 | 900 | 1000 | 40 | 5.0 | 50x100 | 300-600 |
| Other specifications can be customized. steel plate thickness 2.5 mm | ||||||
Galvanized Welded Wire Mesh
Galvanized welded wire mesh can be divided into electrical galvanized welded wire mesh, hot deep galvanized welded wire mesh.
Besides, according different processing methods, there are galvanized before welding wire welded mesh and galvanized after welding welded mesh.
Like electrical galvanized wire welded mesh, hot deep galvanized wire welded mesh, galvanized redrawing wire welded mesh, electrical galvanized(after welding) welded wire mesh, hot deep galvanized(after welding) welded wire mesh.
And Galvanized redrawing welded wire mesh is welding by high quality redrawing low carbon steel wire( the material of this kind wire is high quality hot-rolled wire rod. The main processes is Acid washing, galvanizing, and cold-drawing). The surface of this kind mesh is very bright. It is easy to transport and store. And the price is lower than electrical galvanized welded wire mesh. It is popular in the market. The usage of this kind mesh is same as black welded wire mesh.
Electrical galvanized welded mesh has 15g/m2 zinc coating in common. It was used in industrial, building, travel, mine etc.
Hot deep galvanized welded mesh has thicker zinc. The zinc coating is more than 122g/m2. And the quality is better than electrical galvanize. It usually used in external wall thermal insulation system, concrete pouring,poultry farm, oil, chemical, machines and exports etc.
Application:
In construction in the form of reinforcement brick mesh, welded bar gratings or wire mesh sandwich construction. A wire mesh sandwich construction which comprises an array of line wires, an array of cross wires overlying said array of line wires and a barrier material disposed between the array of line wires and the array of cross welded wires. The array of line wires is joined to said array of cross wires at the points of intersection and through the barrier material, thus securing the barrier material between the array of line wires and the array of cross wires.
