Szczegóły Produktu:
Zapłata:
|
| Rozmiar: | 2400 h x 2300 l | Obróbka powierzchniowa: | Ocynkowany |
|---|---|---|---|
| Rozmiar postu IPE: | 100x55mm | Blednie: | Sekcja W |
| Typ: | Ogrodzenie, krata i bramy, profil kratki ochronnej lub profil zacisku | Funkcja: | Łatwy w montażu, przyjazny dla środowiska, wodoodporny, odporny na gnicie, odporny na gryzonie |
| Rodzaj metalu: | Żelazo, stal, żelazo lub ocynkowane | Wykończenie ramy: | Powierzchnia, powierzchnia, powierzchnia |
| Materiał ramy: | Metal | Rodzaj drewna poddanego obróbce ciśnieniowej: | Obsługiwane cieplnie, naturalne |
| Kolor: | biały, czarny, zielony, niebieski, czerwony | Obróbka powierzchniowa: | Ocynkowane+PVC powlekane, elektryczne \ zanurzone w gorąco ocynkowane+PVC \ proszkowe powlekane |
| Aplikacja: | Siatka ogrodzenia, używana, ogród, mieszkaniowy | Stosowanie: | Ochrona, dekoracja ogrodowa, budynek, ogrodzenie ogrodowe / autostrada / lotnisko |
| E-mail: | devin@industrialmetalmesh.com | WhatsApp: | +8615369013183 |
| Podkreślić: | heavy-duty steel palisade fencing,security steel fence panels,palisade fencing for perimeter protection |
||

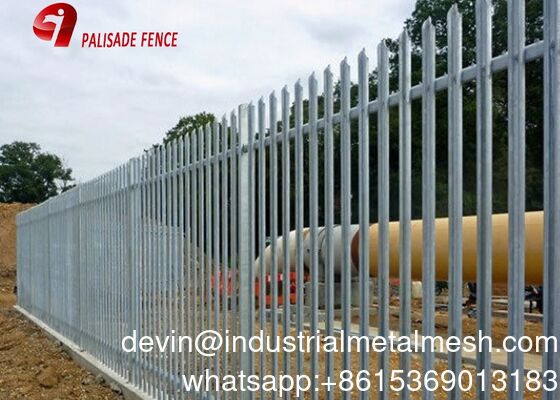

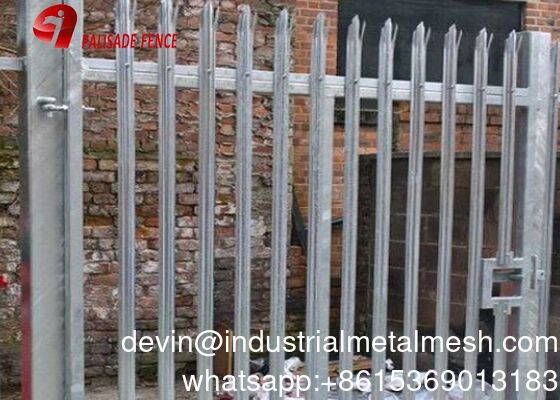

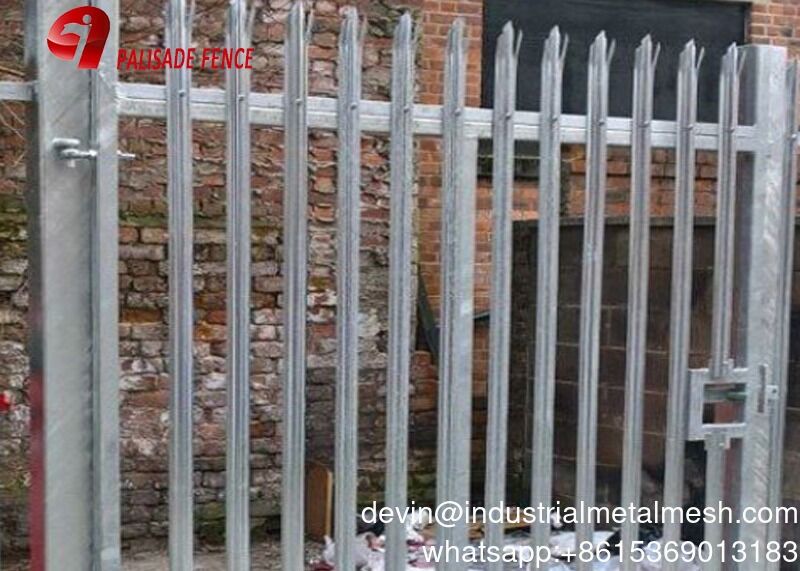

Heavy-Duty Steel Palisade Fencing for Ultimate Security Solutions
Palisade Fence widely accepted as the industry leader to protect and deter general attack from all types and
conditions of intrusion.The pales are made of hot formed and cold rolled steel belts.These belts offer both
strength and rigidity combined with a long life span. Palisade normally produce three types of pales,
"W" profile, "D" profile and angle iron.
The pales are made of hot formed and cold rolled steel belts.These belts offer both strength and rigidity combined with a long life span.
tower Palisade fence normally includes two types of pales, "W" profile, "D" profile .
|
Part Name
|
Specification
|
Component Quantity
|
|
|
H Post
|
100*55*5mm
|
1 pc
|
|
|
Rail Section
|
50*50*5mm
|
2 pcs
|
|
|
Pale Section
|
D Section
|
65*3.0mm
|
17 pcs
|
|
W Section
|
75*2.0mm
|
17 sets
|
|
|
Fish Plate
|
115*30*6mm or 140*39*8mm
|
2 pcs
|
|
|
Saddle Head M8 Botts
|
M8*40mm
|
34 sets
|
|
|
Cup Square M12 Botts
|
M12*30mm
|
4 sets
|
|
Specifications of security palisade fence:
PALISADE FENCE SPECIFICATIONS
• Post: 2400 High fence - 100×45 TFB
• Post: 3000 High Fence - 150 UB 14.0
• Rail: 50x50x6 EA
• Fish Plate: 40×8 140 long
• Corner Fish Plate: 40×8 215 long W Profile
• 'W' Pale: 71x21x3 W Profile
• Rail Fixings: M12x30 Cuphead Bolt and Shear Nut
• Pale Fixings: M8x25 T Bolt and Shear Nut or - Stainless Steel Huck Pin and Collar
• Mid Bay Support: M12x500 Threaded Rod and 2 x Nuts
palisade fence-PF001
| Panel Size | W-Section Pale: 70 mm | Horizontal Rail | Post | |||
| Height | Width | Pale thickness | Qty: Pale | Angle Steel | Square Post | I Post |
| 1.8 m | 2.75 m | 2/2.5/3 mm | 17 pcs | 40 × 40 × 4 mm, 50× 50 × 6 mm | 60 × 60 mm, 80 × 80 mm, 100 × 100 mm | 100 × 55 mm |
| 2.1 m | 2.75 m | 2/2.5/3 mm | 17 pcs | |||
| 2.4 m | 2.75 m | 2/2.5/3 mm | 17 pcs | |||
| 3.0 m | 2.75 m | 2/2.5/3/3.5 mm | 17 pcs | |||
| W-section Pale: 62 mm | ||||||
| 1.8 m | 2.75 m | 1.5/2/2.5 mm | 17 pcs | 40 × 40 × 4 mm, 50× 50 × 6 mm | 60 × 60 mm, 80 × 80 mm, 100 × 100 mm | 100 × 55 mm |
| 2.1 m | 2.75 m | 1.5/2/2.5 mm | 17 pcs | |||
| 2.4 m | 2.75 m | 1.5/2/2.5 mm | 17 pcs | |||
| 3.0 m | 2.75 m | 1.5/2/2.5 mm | 17 pcs | |||
| D-Section Pale: 65 mm | ||||||
| Panel Size | D-Section Pale: 65 mm | Horizontal Rail | Post | |||
| Height | Width | Pale thickness | Qty: Pale | Angle Steel | Square Post | I Post |
| 1.8 m | 2.75 m | 1.5/2/2.5/3 mm | 17 pcs | 40 × 40 × 4 mm, 50× 50 × 5 mm | 60 × 60 mm, 80 × 80 mm, 100 × 100 mm | 100 × 55 mm |
| 2.1 m | 2.75 m | 1.5/2/2.5/3 mm | 17 pcs | |||
| 2.4 m | 2.75 m | 1.5/2/2.5/3 mm | 17 pcs | |||
| 3.0 m | 2.75 m | 1.5/2/2.5/3 mm | 17 pcs | |||
