Szczegóły Produktu:
Zapłata:
|
| Tworzywo: | Stal | Obróbka powierzchniowa: | cynkowane ogniowo |
|---|---|---|---|
| Typ: | Pojemnik na druty | ładowność: | 500 kg |
| E-mail: | devin@industrialmetalmesh.com | WhatsApp: | +8615369013183 |
| Podkreślić: | galvanized collapsible wire mesh baskets,junior wire mesh baskets with drop gate,1/2 drop gate wire baskets |
||

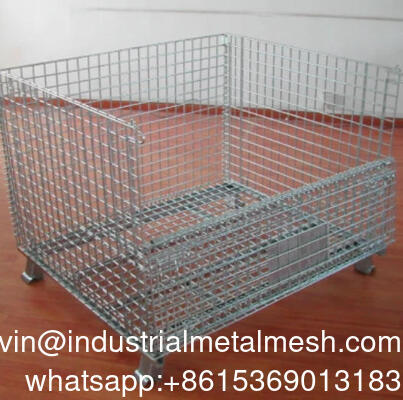

High Quality Galvanized Collapsible Junior Wire Mesh Baskets with 1/2 Drop Gate
Wire container is also called as wire cage or wire basket, which is durable and stronger, at the same time, it is easy
to folding down and stacking high.Because wire container has special strong feet and heavy-duty understructure which
help to stake 4 high when loaded heavy weight. Good visibility and same loading space by using wire container make
the warehouse management unitized and standard. When unused, the wire container can be folded down to save space.
It is easy for forklift accesses from four side. Options accessories include dividers, shelves, card holders, name plates,
casters, locking security lid, fork pockets ,bar runners for storage on rack beams.
| Same design, different sizes | |||||
| Model No. | Outer Dimension | Inner Dimension | Loading Capacity | Net Weight | Gate Style |
| LxWxH(mm) | LxWxH(mm) | Kg | Kg | ||
| YFZ-J1 | 851X512X526 | 772X467X400 | 500 | 24 | full drop gate |
| YFZ-K1 | 831X505X538 | 748X470X400 | 500 | 27 | full drop gate |
| YFZ-J3 | 831X514X538 | 759X471X400 | 800 | 29 | full drop gate |
| YFZ-L1 | 1030X814X838 | 947X775X698 | 1000 | 44 | 1/2 drop gate |
| YFZ-W1 | 1030X814X838 | 947X775X698 | 1500 | 50 | 1/2 drop gate |
| YFZ-L2 | 1230X1014X889 | 1148X965X750 | 1000 | 58 | 1/2 drop gate |
| YFZ-W2 | 1230X1014X889 | 1148X969X748 | 2000 | 70 | 1/2 drop gate |
| YFZ-C1 | 1230X1014X1040 | 1140X950X900 | 1000 | 64 | 1/2 drop gate |
| Material | Mild steel Q235 | ||||
| Application area | Warehouse, logistic, recycling industry | ||||
| Finish | Zinc/hot DIP galvanized/powder coating | ||||
| Remark | Costomized or OEM support | ||||
| Main features | 1. Collapsible-save space when not in use, ideal for return journeys 2. Standard half-hinged gate access 3. Long lasting, economical alternative to disposable packing 4. Open wire mesh design allows for full visibility for inventory checks, Ventilation and cleaness. |
||||
storage cage
Warehouse cage, also known as warehouse cage and butterfly cage, is an important kind of logistics container in warehousing and transportation. It has the advantages of fixed storage capacity, neat storage, clear storage, easy inventory counting and so on. At the same time, it also improves the effective utilization of warehouse space. The storage cage can be folded freely and stored when not in use.
Details
1. It is made of high-quality steel and cold-rolled and hardened, with high strength and large loading capacity.
2. Uniform specifications, fixed capacity, storage of goods at a glance, easy to inventory inventory.
3. The surface is galvanized, beautiful and anti-oxidation, and has a long service life.
4. It adopts international standards and can be used with containers to effectively improve space utilization.
5. Can be stacked on top of each other to achieve three-dimensional storage.
6. Environmentally friendly treatment, health immunization, turnover, storage and recycling do not pollute the environment.
7. Efficient operation can be carried out with equipment such as forklifts, cattle, elevators and cranes.
8. The folding structure has low recycling cost and is an alternative to wooden crates.
9. Wheels can be mounted at the bottom, making it easy to turn around inside the factory.
Specification
| Product name | Foldable Wire Mesh cage | |||
| Color | Regular is Silvery/Supports various color customization | |||
| Load Capacity | 200-1500KG | |||
| Specifications | Length:800-1800mm Width:600-1200mm Height:640-1350mm |
|||
| Specific specifications and dimensions | ||||
| Outer Dimension L*W*H (mm) |
Inside Dimension L*W*H (mm) |
Mesh Size (mm) |
Wire Diameter (mm) |
Net Weight (KG) |
| 800*600*640 | 750*550*500 | 50*50 | 5.0 | 20.6 |
| 800*600*640 | 750*550*500 | 50*50 | 5.5 | 22.4 |
| 800*600*640 | 750*550*500 | 50*50 | 5.8 | 25.9 |
| 800*600*640 | 750*550*500 | 50*50 | 6.0 | 28 |
| 1000*800*840 | 950*750*700 | 50*100 | 5.0 | 27.6 |
| 1000*800*840 | 950*750*700 | 50*50 | 5.0 | 31.2 |
| 1000*800*840 | 950*750*700 | 50*50 | 5.5 | 34.6 |
| 1000*800*840 | 950*750*700 | 50*100 | 5.8 | 37.5 |
| 1000*800*840 | 950*750*700 | 50*50 | 5.8 | 41.1 |
| 1000*800*840 | 950*750*700 | 50*50 | 6.0 | 43 |
| 1200*1000*890 | 1150*950*750 | 50*100 | 5.0 | 35.9 |
| 1200*1000*890 | 1150*950*750 | 50*50 | 5.0 | 42.5 |
| 1200*1000*890 | 1150*950*750 | 50*100 | 5.5 | 39.3 |
| 1200*1000*890 | 1150*950*750 | 50*100 | 5.8 | 46.6 |
| 1200*1000*890 | 1150*950*750 | 50*50 | 5.8 | 53.6 |
| 1200*1000*890 | 1150*950*750 | 50*50 | 6.0 | 60 |
| 1500*1100*1100 | 1450*1050*960 | 50*100 | 5.8 | 63.5 |
| 1600*1200*1340 | 1550*1150*1200 | 50*100 | 5.8 | 77.5 |
| 1800*1200*1350 | 1750*1150*1110 | 50*100 | 5.8 | 90 |
| All Wire Mesh Cage's Specifications, dimensions, and colors can be customizable. If you have any further requirements, please click here to contact us for instant inquiry. |
||||
Features
I. Sliding locking handles hold drop side securely.
Packaging:
* Plastic banding & Stretch film wrapped
* easy loading and unloading with standard forklift truck
* as your requirement
Delivery:
7-15 days
