Szczegóły Produktu:
Zapłata:
|
| Tworzywo: | Drut ze stali węglowej | Otwarcie siatki: | 12 × 12, 20 × 20, 25 × 25, 12 × 25 mm |
|---|---|---|---|
| Średnica drutu: | 0,4 mm - 1,5 mm | Szerokość rolki: | 0,4 m, 0,5 m, 0,6 m, 0,8 m, 1,0 m, 1,25 m, 1,5 m, 2,0 m |
| Długość rolki: | 15M, 30M, 50M itd | Obróbka powierzchniowa: | Cynkowane ogniowo lub cynkowane elektrycznie |
| Numer modelu: | xx-01001 | Aplikacja:: | Siatka ogrodzeniowa |
| E-mail: | devin@industrialmetalmesh.com | WhatsApp: | +8615369013183 |
| Podkreślić: | hot dip galvanized welded wire mesh,welded wire mesh for road pavement,road reinforcement wire mesh panel |
||

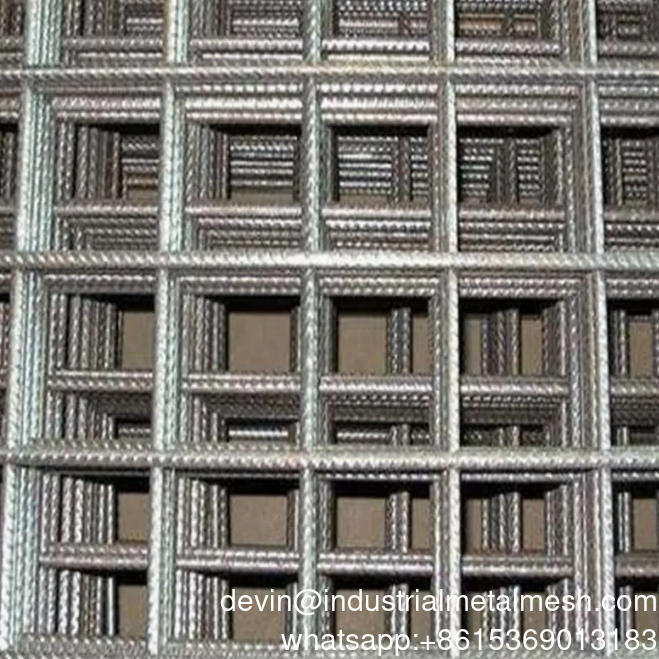

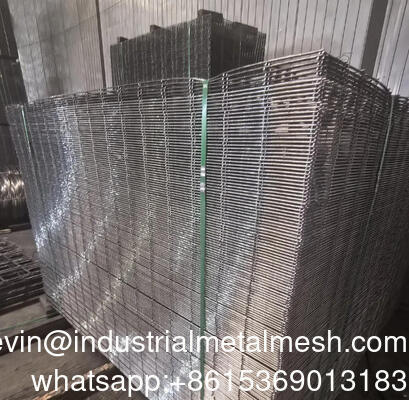

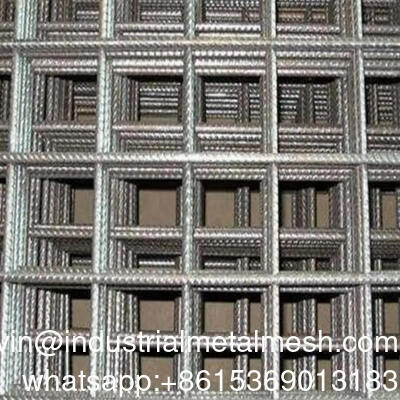

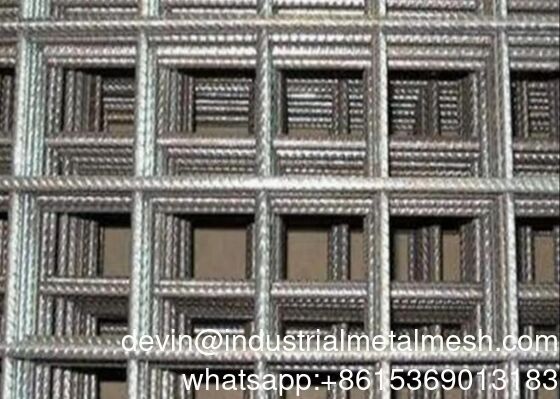

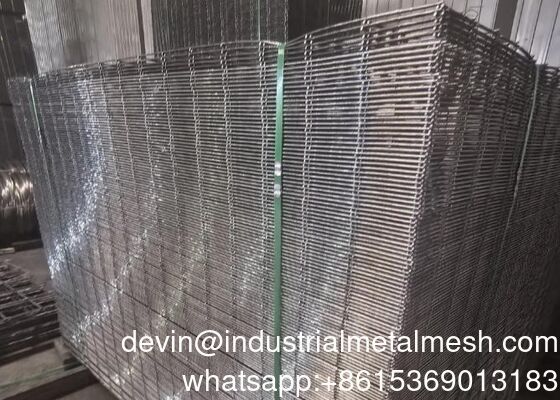

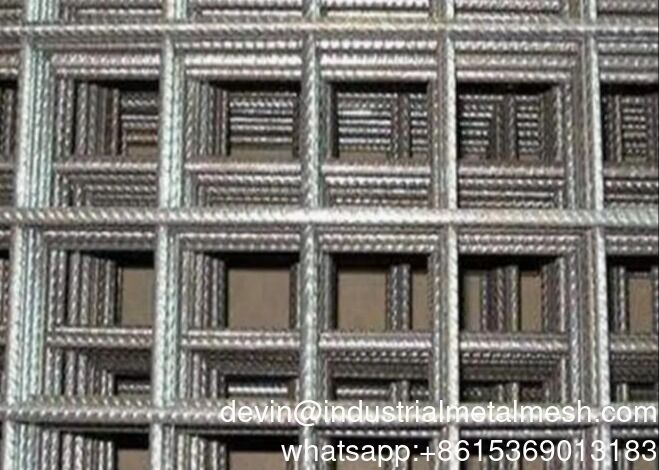

Hot DIP Galvanized Welded Wire Mesh Panel for Road Pavement Reinforcement
Product Description:
wire diameter: 22guage, 20guage, 0.7mm, 1mm, 1.2mm, 1.5mm, 2mm
length:30m,20m,2.4m,2m,or as per you request
width: 1m,48",24" 3',4',5',
Mesh Opening Size:1/2", 1/4", 1", 3/8", 1 1/2", 2", 3/4", 1"*2" etc
Roll Size: 3′*100′, 4′*100′. 3FT*100FT, 4FT*100FT, 4FT*50FT
Surface treatment: Elec-galvanized, hot-dip galvanized, pvc coated, powder coating etc.
Feature: The structure of this kind of wire mesh is strong, lasting and rust-resistant. Galvanized welded wire mesh is galvanized after welding.
Application: They are used in industry and agriculture building, transportation and mining for all such purposes as poultry houses, egg baskets, runway enclosures, draining rack, fruit drying screen, fence.
|
Specification
|
||
|
Opening
|
Wire Diameter
|
|
|
Inch
|
metric Unit(mm)
|
|
|
1"x1"
|
25mmx25mm
|
2.5mm,2.0mm,1.8mm,1.6mm
|
|
2"x2"
|
50mmx50mm
|
2.5mm,2.0mm,1.8mm,1.6mm
|
|
2"x3"
|
50mmx70mm
|
6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm
|
|
2"x4"
|
50mmx100mm
|
6.0mm,5.0mm,4.0mm,3.0mm,2.0mm
|
|
2"x6"
|
50mmx150mm
|
6.0mm,5.0mm,4.0mm,3.0mm
|
|
2"x8"
|
50mmx200mm
|
6.0mm,5.0mm,4.0mm,3.0mm
|
|
3"x3"
|
75mmx75mm
|
6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm,1.6mm
|
|
3"x4"
|
75mmx100mm
|
6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm
|
|
4"x4"
|
100mmx100mm
|
6.0mm,5.0mm,4.0mm,3.0mm
|
|
5"x5"
|
125mmx125mm
|
6.0mm,5.0mm,4.0mm,3.0mm
|
|
6"x6"
|
150mmx150mm
|
6.0mm,5.0mm,4.0mm,3.0mm
|
|
Technical Note:
|
||
|
1.Standard Panel Length:0.5m-5.8m;Width:0.5m-2.4m
2.Special size available at request |
||
