Szczegóły Produktu:
Zapłata:
|
| Tworzywo: | Stal | Obróbka powierzchniowa: | cynkowane ogniowo |
|---|---|---|---|
| Standard: | GB/T3091 - 2001, BS1387 - 1985, DIN EN10025, EN10219, JIS G3444:2004, ASTM A53 | Stopień stali: | GB/T3091 - 2001:Q195, Q235 BS1387 - 1985, DIN EN10025 EN10219:S235JR JIS G3444:2004:STK400 ASTM A53: |
| Podkreślić: | galvanized steel round tube,zinc coated square tube,high durability steel tubes |
||

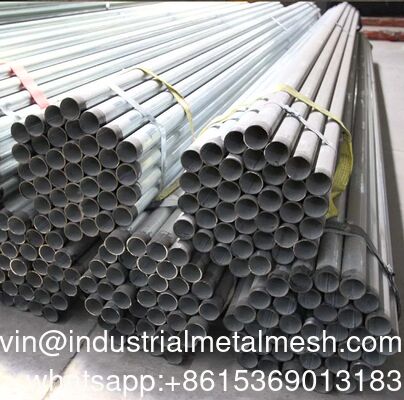

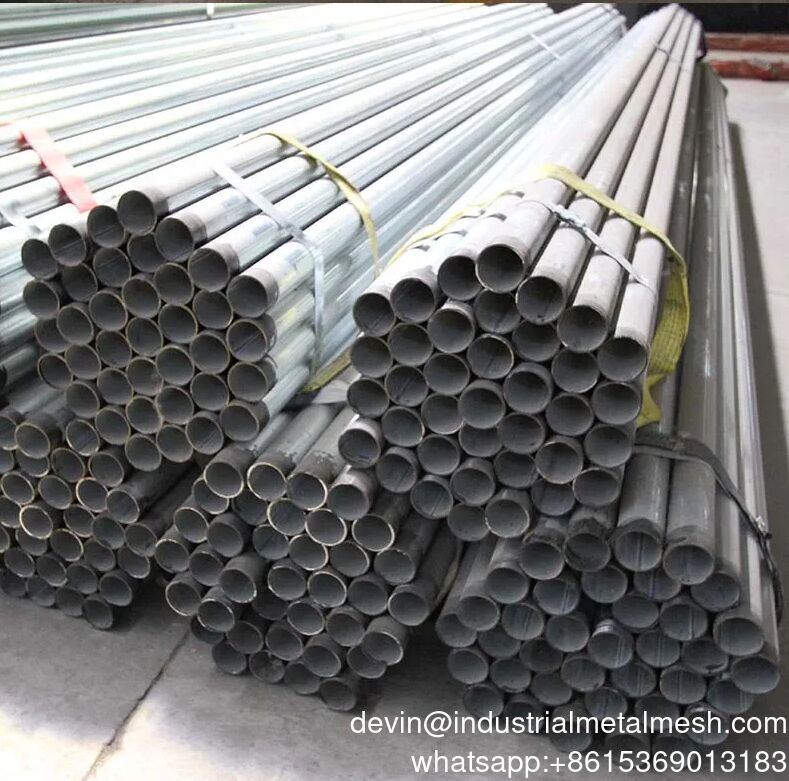

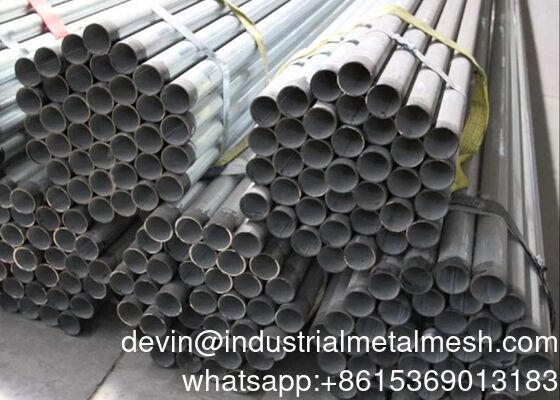

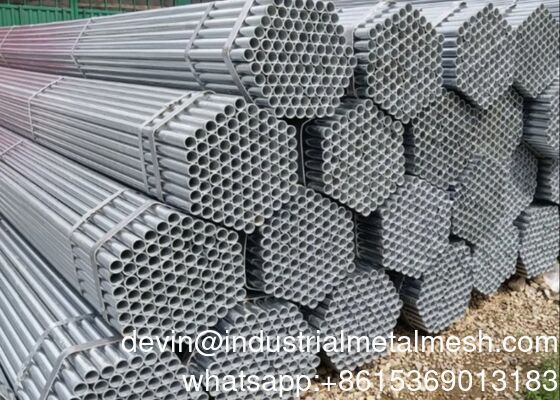

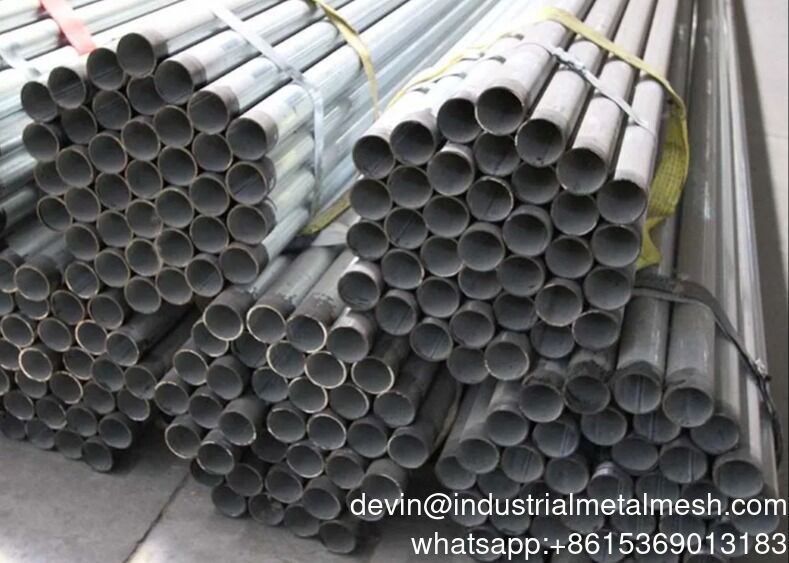

High Durability Zinc Coated Tubes Galvanized Steel Round Tube Square Tube
Hot dip galvanized tube is to make molten metal and iron matrix reaction and produce alloy layer, so that the matrix and coating of the combination of the two. Hot dip galvanizing is the first steel pipe pickling, in order to remove iron oxide on the surface of the steel pipe, pickling, through ammonium chloride or zinc chloride aqueous solution or ammonium chloride and zinc chloride mixed aqueous solution tank for cleaning, and then into the hot dip plating tank. Hot dip galvanizing has the advantages of uniform coating, strong adhesion and long service life. Complex physical and chemical reactions occur between hot dip galvanized steel tube and molten plating solution to form a tightly structured zinc-ferroalloy layer with corrosion resistance. The alloy layer is integrated with pure zinc layer and steel tube matrix, so its corrosion resistance is strong.
|
Product Name
|
Galvanized Round Pipe
|
|
Standard
|
GB/T 3091, ASTM A53, EN 10255, JIS G3452, DIN 2440
|
|
Material
|
Q235A, Q235B, Q355A, Q355B, 10#, 20#, Low carbon steel
|
|
Technique
|
High frequency welded, Hot dip galvanized, Electro galvanized
|
|
Side shape
|
Round
|
|
Outer Diameter
|
10mm-325mm or Customization
|
|
Thickness
|
1.2mm-12mm or Customization
|
|
Length
|
3m-12m or Customization
|
|
Surface Treatment
|
Hot dip galvanizing,Electro-galvanized, Passivation
|
|
Type
|
Welded, Seamless (optional)
|
|
Origin
|
China
|
|
HS Code
|
7304210000
|
|
Delivery Time
|
7-30days
|
|
After-sales Service
|
24 hours online
|
|
Production Capacity
|
20000000 Tons/Year
|
|
Price Terms
|
EXW, FOB, CIF, CRF, CNF or others
|
|
Loading Port
|
Tianjin,Qingdao,shanghai,customization
|
|
Section Shape
|
Round
|
|
Payment Term
|
TT, LC, Cash, Paypal
|
|
Application
|
1. Building scaffolding, water supply and drainage pipes, guardrails2. Agricultural irrigation, municipal engineering, machinery manufacturing3. Steel structure support, furniture accessories, ship supporting, etc.
|
|
Packaging
|
Bundle, PVC Film Wrapping, Steel Strip Binding, Standard export seaworthy package or as Request
|
|
Processing Service
|
Cutting, Bending, Punching, Tapping
|
|
Tolerance
|
±1%
|
2.Product Chemical Composition & Mechanical Properties :
| Grade | Chemical Composition | Mechanical Properties | ||||||
| C | Mn | Si | S | P | Yield | Tensile | Elongati | |
| Strength Mpa | Strenth Mpa | -on % | ||||||
| Q195 | 0.06-0.12 | 0.25-0.50 | ≤0.30 | ≤0.045 | ≤0.05 | ≥195 | 315-430 | ≥33 |
| Q215 | 0.09-0.15 | 0.25-0.55 | ≤0.30 | ≤0.05 | ≤0.045 | ≥215 | 335-450 | ≥27 |
| Q235 | 0.12-0.20 | 0.30-0.67 | ≤0.30 | ≤0.045 | ≤0.04 | ≥235 | 375-500 | ≥26 |
| Q345 | ≤0.20 | 1.00-1.60 | ≤0.55 | ≤0.04 | ≤0.04 | ≥345 | 470-630 | ≥22 |
3.Product standard test:
| Q195 ≈ | Grade B,SS330 SPHC,S185 |
| Q215 ≈ | Grade C/CS Type B,SS330 SPHC |
| Q235 ≈ | Grade D,SS400,S235 |
| Q345 ≈ | Grade 50/345,SPFC590,E/S335 |
1.Black square&rectanhgular steel pipe:ERW steel tube
2.Pre-galvanized square&rectangular steel pipe: Pre-galvanized square/rectangular tube is made of hot dipped galvanized steel strip directly.
3.Hot dipped galvanizedsquare&rectangular steel pipe : Hot dipped galvanized square/rectangular tube owns thicker zinc coating than pre-galvanized square/rectangular tube. Black tubes will be dipped into zinc pool for galvanizing.
4.Electro galvanized square&rectangular steel pipe : The technology of electro galvanized square/rectangular tube is similar to hot dipped galvanized tube, but the thickness of zinc coating is less than hot dipped galvanized tube.
5.Painted square&rectangular steel pipe:Painted square/rectangular to remove the rust and clean the oil first and then paint the required color paint.
Standard:GB/T6728:2002,ASTMA500,JIS G3466,EN10210,EN10219
Steel Grade:
GB/T6728:2002 : Q195 , Q235 , Q345
ASTM A500:GR. A , GR. B, GR. C , GR. D
JIS G3466 : SS440,SS540
EN10210, EN10219: S235JR ,S275JR,S355JR, S355J2H
Square & rectangular steel tube : The size can be based on your requirement to custom.
| Name | Size | Wall Thickness | Length |
| mm | mm | m | |
| Square tube | 10x10-500x500 | 0.6-25.0 | 1-12m |
| Rectangular tube | 20x10-200x400 | 0.7-13.0 | 1-12m |
|
TECHNICAL PARAMETERS
|
|
|
Product Name
|
Galvanized Steel Round Pipe
|
|
Keywords
|
Steel Pipe
|
|
Standard
|
BS1139-1775, EN1039, EN10219, JIS G3444:2004, GB/T3091-2001, BS1387-1985, DIN EN10025, ASTM A53 SCH40/80/STD, BS-EN10255-2004
|
|
Material
|
Q235, Q345, S235JR, S275JR, STK400, STK500, S355JR, GR.B-D
|
|
Thickness
|
Pre Galvanized:0.6-1.5mm.
|
|
Hot Dipped Galvanized: 1.6- 25mm.
|
|
|
Length
|
5.80 Meters Or 6 Meters As Usual Or By Customer'S Requirements
|
|
Out Diameter
|
Pre Galvanized:1/2''-4''(21.3-114.3mm).
|
|
Hot Dipped Galvanized:1/2''-10''(21.3Mm-273.1mm).
|
|
|
Zinc Coating
|
Pre Galvanized:5GSM-40GSM
|
|
Hot Dipped Galvanized 35GSM-200GSM
|
|
|
Technique
|
Electronic Resistance Welded (ERW)
|
|
Surface Finish
|
Pre-Galvanized, Hot Dipped Galvanized, Electro Galvanized, Black, Painted, Threaded, Engraved, Socket.
|
|
Application
|
Hot Dipped Galvanized Steel Pipe Is Widely Used In Construction, Structure, Accessorize,Construction, Machinery Parts,Fluid Transportation,The Stress Parts Of The AutomobileTractor Parts And So On.
|
|
Packing
|
1.Big OD:In Bulk
|
|
2.Small OD:Packed By Steel Strips
|
|
|
3.Woven Cloth With 7Slats
|
|
|
4.According To The Requirements Of Customers
|
|
|
SIZE INTRODUCTION
|
||
|
Out Diameter
|
Wall Thickness
|
Length
|
|
Inch
|
Mm
|
M
|
|
1/2"
|
0.5-2.75
|
1-12M (Customized)
|
|
3/4"
|
0.5-2.75
|
1-12M (Customized)
|
|
1"
|
0.5-3.75
|
1-12M (Customized)
|
|
1-1/4"
|
0.5-5.0
|
1-12M (Customized)
|
|
1-1/2"
|
0.5-5.0+
|
1-12M (Customized)
|
|
2"
|
0.5-5.0+
|
1-12M (Customized)
|
|
2-1/2"
|
0.8-5.0+
|
1-12M (Customized)
|
|
3"
|
0.8-5.0+
|
1-12M (Customized)
|
|
4"
|
0.8-4.0
|
1-12M (Customized)
|
|
5"
|
1.1-4.75
|
1-12M (Customized)
|
|
6"
|
1.1-6.0+
|
1-12M (Customized)
|
|
8"
|
1.2-6.5+
|
1-12M (Customized)
|
|
10"
|
2.75-5.0+
|
1-12M (Customized)
|
