Szczegóły Produktu:
Zapłata:
|
| rozmiar otworu: | 2,5 mm - 130 mm | Aplikacja: | Górnictwo, wydobywanie, przetwórstwo minerałów |
|---|---|---|---|
| Obróbka powierzchniowa: | Ocynkowane, malowane lub powlekane | Cechy: | Równomierna siatka, mocna struktura |
| Technik: | Tkana siatka | Bezpłatna próbka: | Tak |
| HAK: | hak z blachą stalową | Zainstalować: | haczykowaty |
| Elastyczna sprężystość: | 34 procent | Specyfikacja: | 1,5M*2,0M; 2M*3M; 3M*2,5M |
| Obróbka powierzchniowa: | ocynkowane lub malowane. | Metoda instalacji: | Przykręcane lub zaczepiane do ramek ekranu |
| Kształt dziury: | Prostokąt | Powierzchnia: | naturalna powłoka proszkowa |
| Nazwa produktu: | Sieć ekranu górniczego | ||
| Podkreślić: | durable mining screen mesh,vibrating quarry screen mesh,mining vibrating screen mesh |
||

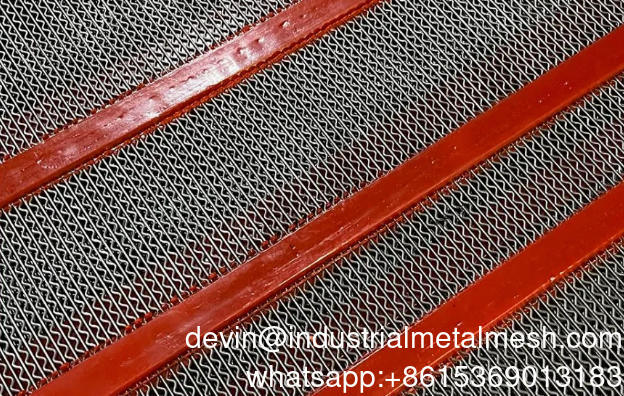

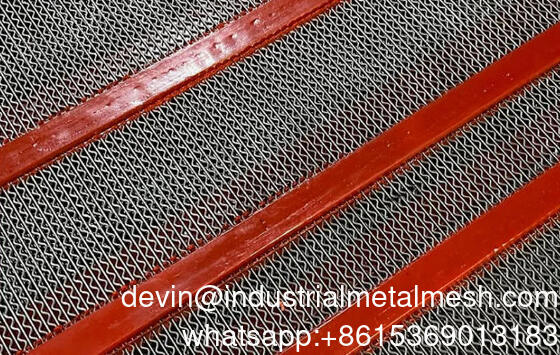

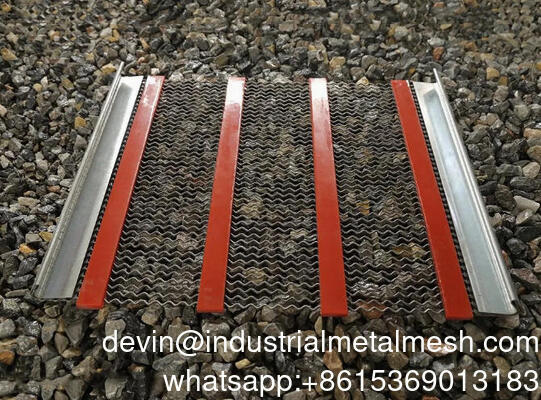

Durable Vibrating Screening Mesh is designed to withstand the harsh conditions of mining and quarry operations. Made from high-tensile steel or wear-resistant alloys, this mesh delivers excellent strength, impact resistance, and long service life. It is ideal for screening heavy materials such as gravel, crushed stone, sand, and ores. Engineered for compatibility with various vibrating screen types, it ensures high throughput and precise material separation. The mesh is available in multiple weave styles-including square, slotted, and self-cleaning patterns-to prevent clogging and improve screening efficiency. Custom sizes, wire diameters, and hook types can be tailored to meet specific operational requirements.
| Aperture Square Weave |
Light duty Wire Dia kg/m²OA% |
Medium Wire Dia kg/m OA% |
Heavy Duty Wire Dia kg/m²OA% |
||||||
| 2.00 | 1.37 | 7.1 | 35 | ||||||
| 3.15 | 2.00 | 9.9 | 37 | 2.50 | 14.1 | 31 | |||
| 4.0 | 2.00 | 8.50 | 44 | 2.50 | 12.2 | 38 | 3.05 | 16.8 | 32 |
| 5.0 | 2.00 | 7.80 | 51 | 2.50 | 16.6 | 44 | 3.05 | 14.7 | 38 |
| 5.6 | 2.50 | 9.80 | 48 | 3.05 | 13.7 | 41 | 4.00 | 21.2 | 34 |
| 6.35 | 2.50 | 8.89 | 51 | 3.05 | 12.6 | 46 | 4.00 | 19.6 | 38 |
| 6.8 | 2.50 | 9.00 | 51 | 3.05 | 10.0 | 44 | 4.00 | 19.7 | 37 |
| 7.1 | 2.50 | 8.80 | 55 | 3.05 | 11.9 | 48 | 4.00 | 18.3 | 41 |
| 8 | 2.50 | 10.80 | 54 | 4.00 | 16.9 | 44 | 5.00 | 24.4 | 38 |
| 9 | 3.05 | 9.80 | 55 | 4.00 | 15.6 | 48 | 5.00 | 22.7 | 44 |
| 10 | 3.05 | 9.10 | 58 | 4.00 | 14.5 | 51 | 5.00 | 21.2 | 44 |
| 11.2 | 3.05 | 10.40 | 54 | 5.00 | 19.6 | 48 | 5.60 | 28.6 | 44 |
| 12.5 | 4.00 | 12.30 | 57 | 5.00 | 18.1 | 51 | 5.60 | 20.0 | 47 |
| 14 | 4.00 | 16.70 | 54 | 5.00 | 20.0 | 51 | 6.80 | 24.6 | 48 |
| 16 | 5.00 | 15.10 | 58 | 5.60 | 19.5 | 56 | 6.80 | 22.6 | 51 |
| 18 | 5.00 | 14.50 | 58 | 6.80 | 20.7 | 55 | 7.10 | 25.0 | 51 |
| 20 | 5.60 | 14.00 | 61 | 6.80 | 19.2 | 58 | 7.10 | 24.0 | 54 |
| 22 | 5.60 | 17.60 | 61 | 7.10 | 21.5 | 57 | 8.00 | 26.7 | 54 |
| 25 | 6.80 | 16.10 | 64 | 7.10 | 20..1 | 60 | 8.00 | 24.6 | 57 |
| 28 | 7.00 | 14.70 | 63 | 8.00 | 19.0 | 61 | 9.00 | 27.8 | 57 |
| 32 | 8.00 | 20.60 | 64 | 9.00 | 26.0 | 60 | 10.00 | 30.4 | 58 |
| 38 | 8.00 | 18.70 | 67 | 9.00 | 28.1 | 64 | 10.00 | 27.9 | 61 |
| 40 | 9.00 | 21.00 | 67 | 10.00 | 25.4 | 64 | 11.20 | 31.1 | 61 |
| 45 | 9.00 | 19.50 | 69 | 10.00 | 23.4 | 67 | 11.20 | 28.4 | 64 |
| 50 | 10.00 | 23.20 | 69 | 11.20 | 26.0 | 67 | 12.50 | 31.8 | 64 |
| 56 | 10.00 | 19.20 | 72 | 11.20 | 28.7 | 69 | 12.50 | 29.0 | 67 |
| 63 | 10.00 | 17.40 | 75 | 11.20 | 24.5 | 72 | 12.50 | 25.1 | 70 |
| 76.2 | 10.00 | 14.80 | 78 | 11.20 | 16.0 | 75 | 12.50 | 20.0 | 73 |
| 80 | 10.00 | 16.00 | 79 | 11.20 | 17.5 | 72 | 12.50 | 21.5 | 75 |
| 90 | 10.00 | 14.00 | 81 | 11.20 | 15.7 | 79 | 12.70 | 19.4 | 77 |
| 100 | 10.00 | 10.00 | 82 | 11.20 | 14.3 | 81 | 12.70 | 17.6 | 79 |
Wear Resistance
Our manganese steel mesh stands out with its exceptional wear resistance, a hallmark of its superior material properties. It confidently withstands friction and impact from various materials, ensuring sustained screening efficiency over prolonged use.
High Strength
Boasting high hardness and exceptional strength, our high manganese steel mesh is designed to endure substantial mechanical stress and rigorous vibrations without any deformation or damage, guaranteeing long-lasting performance.
Adaptability
Manganese steel mesh demonstrates remarkable adaptability, catering to the screening needs across diverse environments and materials such as coal, ores, aggregates, and sands. It is a preferred choice across industries like mining, construction, and metallurgy.
Customizability
Tailored to meet specific screening requirements, our manganese steel mesh offers versatile customizability in terms of specifications, sizes, and shapes, adapting effortlessly to different working scenarios and demands.
