Szczegóły Produktu:
Zapłata:
|
| Tworzywo: | Aluminium, drut stalowy ocynkowany | Nazwa produktów: | krata rozpórki uchwytu |
|---|---|---|---|
| Typ: | Perforowana siatka, trawienie lub tłoczenie | Technika: | perforowany |
| Styl splotu: | perforowane, dziurkowane, dziurkowane | Kształt otworu: | Okrągły, diamentowy itp., Kwiat śliwy, ośmiokątny |
| Obróbka powierzchni: | Powłoka natryskowa / Malowanie natryskowe / Powłoka fluorowęglowa, ocynkowana ogniowo, ocynkowana i | Kolor: | Wszystkie kolorowe chipy mają biały, niebieski, srebrny, złoty |
| Nazwa produktu: | sześciokątna perforowana blacha, rozszerzalna siatka diamentowa | Grubość: | 0,5-8 mm, 0,3 mm-8 mm |
| Funkcja: | Odporność na korozję, przystojna i dobra jakość, trwała, oporność na kwas, przeciwdziałanie oporność | Szerokość: | 1 m lub 1,22 m, 1,22 m lub mniej |
| Stosowanie: | itp., dekoracyjne, filtr oleju/powietrza, żywność | Długość: | 2M lub 2,44 m |
| Rozmiar: | Dostosowany rozmiar, standard | Kształt: | kwadratowy, można ciąć na okrągły lub kwadratowy kształt, okrągły kształt, owalny, sześciokątny |
| Poziom: | 1,0 mm-100 mm lub na żądanie. | E-mail: | devin@industrialmetalmesh.com |
| WhatsApp: | +8615369013183 | ||
| Podkreślić: | aluminum stainless steel grating,anti slip dimple plate,grip strut stair tread |
||

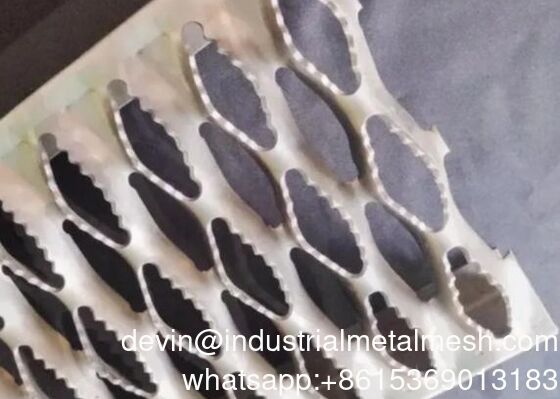

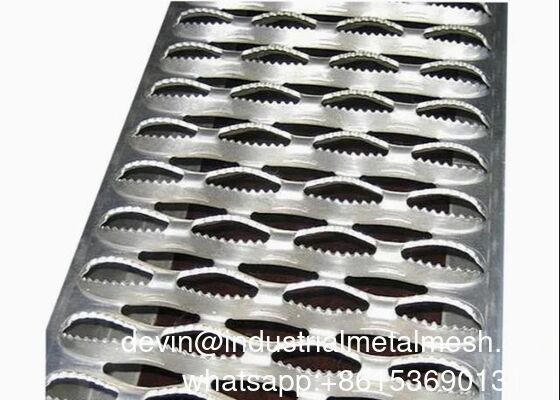

Aluminum Stainless Steel Grating Grip Strut Stair Tread Anti Slip Dimple Plate for Ladder Rungs
The anti-skid plate walkway, also known as an anti-skid boardwalk, is designed to enhance safety when walking in wet or slippery environments. These walkways typically use special materials or surface treatments to increase friction and reduce the risk of accidental slips. The design of anti-skid plate walkways takes into account factors such as the degree of wetness on the ground, user walking habits, and the specific characteristics of the environment.
These walkways are widely used in various locations such as coastal promenades, wetland conservation areas, pool edges, and other areas that are regularly or seasonally slippery. In these places, anti-skid plate walkways not only provide a safer and more stable walking surface but also effectively prevent injuries and accidents caused by slippery conditions, which is particularly important for the elderly and people with mobility challenges.
Material selection is a key consideration in designing anti-skid plate walkways. Common anti-skid materials include rubber, polymer composites, and specially designed surface textures, all of which enhance traction underfoot and maintain effective anti-slip properties even in wet or rainy weather conditions.
In addition to functional considerations, the design of anti-skid plate walkways also emphasizes aesthetics and durability. Modern designs integrate anti-skid functionality with environmental aesthetics, making walkways not only safety features but also part of the landscape. Therefore, designers often consider harmony with the surrounding natural or architectural environment when selecting materials, colors, and structures, achieving both aesthetic and practical purposes.
In summary, anti-skid plate walkways play an important role in modern urban planning and public space design. They enhance pedestrian safety, provide stable and comfortable walking experiences, and serve as crucial infrastructure for promoting urban safety and health.
|
Product Name
|
Perforated Grip Strut Grating
|
|
Material
|
Mild Steel, Pre-Galvanised Steel, Aluminium, Stainless Steel, Corten Steel etc.
|
|
Specifications
|
Stainless Steel, Hot Rolled Steel, Cold Rolled Steel, Aluminum plate
|
|
Thickness
|
0.5mm-4mm (additional thickness are available on request)
|
|
Hole Size
|
2mm-50mm (other hole sizes are also available)
|
|
Width
|
Customized
|
|
Length
|
Customized
|
|
Application
|
Ideal for elevated applications such as suspended walkways or conveyor catwalks, these channels provide safe, economical, slip resistant options for long span walkways.
|
|
Note
|
Perforations must be the same or larger in size than the material thickness.
|
Grip struct perforated steel grating
Diamond Grip Strut Safety Plank Grating provides a maximum safety and slip resistant option against mud, ice, snow, grease, oil or detergents on plank, walkways, catwalks, stairs, etc. The plank grating is usually made of lightweight Low carbon steel Q235, pre-galvanized steel plate, Stainless steel 304 or 316, go througn cutting the right size easily, punching the serrated diamond hole, and bending into depth as your required.
The grip strut plank grating includes regular and heavy duty types, which can be 10' or 12' lengths and 4.75'' to 24'', diamonds
of ,channel heights of , metal wall thick of 12 & 14 ga. Pre-Galvanized and Plain Steel, 10 & 12 ga. 5052-H32 Aluminum, 16 ga.Stainless Steel 304 and 316 ,Widths 4-3/4'', 7'', 9-1/2'', 11-3/4'', 18-3/4'', 24'' , Heights 1-1/2'', 2'', 2-1/2'',3''Lengths,or cut to size, with necessary accessories of splice plates, anchor plates, diamond washer bolt kits.
| Item No. | Item Description | Standard Width | Standard Channel Depth | Standard Length |
| 1 | 2-Diamond Plank | 4.75'' (120.65mm) |
1.5'', 2'' and 2.5'' (38.1mm, 50.8mm and 63.5mm) |
10' and 12' (3048mm and 3657.6mm) |
| 2 | 3-Diamond Plank |
7'' (120.65mm) |
1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm) |
10' and 12' (3048mm and 3657.6mm) |
| 3 | 4-Diamond Plank |
9.5'' (241.3mm) |
1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm) |
10' and 12' (3048mm and 3657.6mm) |
| 4 | 5-Diamond Plank |
11.75'' (298.45mm) |
1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm) |
10' and 12' (3048mm and 3657.6mm) |
| 5 | 8-Diamond Plank |
18.75'' (476.25mm) |
1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm) |
10' and 12' (3048mm and 3657.6mm) |
| 6 | 10-Diamond Plank |
24'' (609.6mm) |
2'' and 3'' (50.8mm and 76.2mm) |
10' and 12' (3048mm and 3657.6mm) |
| 7 | 10-Diamond Walkway |
24'' (609.6mm) |
4.5'' (114.3mm) |
10' and 12' (3048mm and 3657.6mm) |
