| Skład chemiczny: | Fe, C, Si, Mn, S, P | Stop czy nie: | Nie-siły |
|---|---|---|---|
| Możliwość rozwiązania projektu: | projektowanie graficzne, projektowanie modeli 3D, kompleksowe rozwiązania dla projektów | Aplikacja: | Willa |
| Obróbka powierzchni: | Cynkowanie ogniowe, malowanie lub nieobrobione | Długość rusztu: | 1000 mm |
| Szerokość rusztu: | 800 mm | Szerokość pręta nośnego x grubość: | 25x3mm |
| Kształt pręta nośnego: | Zwykła, ząbkowana krata stalowa typu I | Kształt poprzeczki: | okrągły, skręcony, kształt paska |
| Rozmiar siatki: | 30x100mm | E-mail: | devin@industrialmetalmesh.com |
| WhatsApp: | +8615369013183 | ||
| Podkreślić: | galvanized steel grating wear resistance,steel grating withstands heavy friction,durable galvanized steel grating |
||

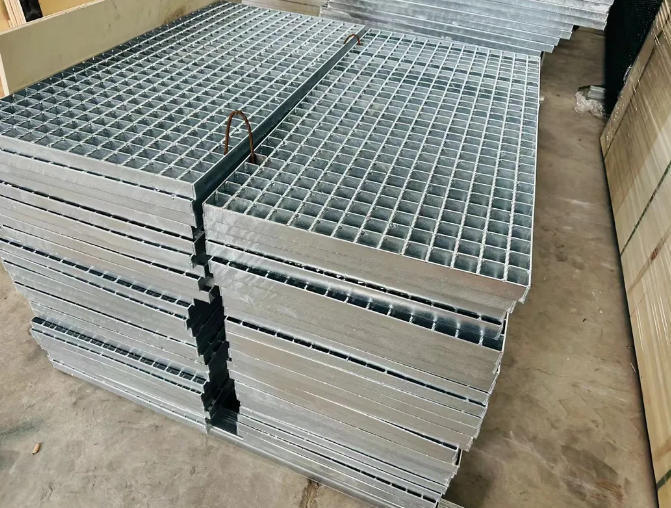

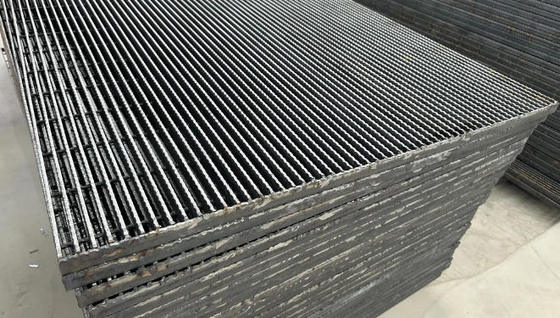

Strong Wear Resistance Galvanized Steel Grating Can Withstand Greater Wear And Friction
Steel grating typically consists of parallel and perpendicular steel bars, with the perpendicular bars welded or locked into place by various methods such as welding, riveting, or swaging. The design of the grating allows for the passage of air, light, and liquids while providing structural support.
Steel grating is extensively used for industrial flooring in factories, warehouses, manufacturing facilities, and industrial plants. Its robust construction provides a stable and safe walking surface for workers while allowing ventilation, drainage, and the passage of light and air.
|
Production name
|
Steel grating
|
|
Material
|
Carbon steel, Stainless steel, Aluminum
|
|
Surface treatment
|
Hot dipped galvanized, Spray-painting, Polished and powder coated
|
|
Bearing Bar type
|
Flat bar, Serrated bar, I-bar, inserting steel grating etc
|
|
Beaing bar size
|
20*3mm, 25*3mm, 30*3mm, 32*3mm, 40*3mm, 50*3mm, 60*3mm, 70*3mm
20*4mm, 25*4mm, 30*4mm, 32*4mm, 40*4mm, 50*4mm, 60*4mm, 70*4mm
20*5mm, 25*5mm, 30*5mm, 32*5mm, 40*5mm, 50*5mm, 60*5mm, 70*5mm
|
|
Mesh size
|
30*100mm, 40*100mm, 50*100mm,
30*50mm, 40*50mm, 50*50mm,
30*30mm, 34*38mm
|
|
Use to
|
flooring, catwalk, decking, stair tread, fencing, ramp, dock, trench cover, drainage pit cover, maintenance platform, workshops, motor rooms, trolley channels, heavy loading areas, boiler equipment and heavy equipment areas, etc.
|
metal walking grates introduction-- galvanized road drainage grates
| Bearing bar type | Flat bar | I bar | Serrated bar | |
| Cross bar type | Twisted bar | Round bar | flat bar | |
| Production process | welded | Pressure locked | ||
| Surface treatment | Self-colour | Galvanized | painted | |
| application | Platform | walkway&floor | Trench cover | Steel stair treads |
| Suspended ceiling | Barrier fence |
bearing bar types:
surface treatment: mill finish,hot dip galvanized,painted
steel grating standard-- galvanized road drainage grates
| Steel Grating Standard | |||
| Steel Grating Standard | Steel Standard | Galvanizing Standard | |
| China Standard | YB/T 4001.1-2007 | GB700-88 | GB/T13912-2002 |
| USA Standard | ANSI/NAAMM (MBG531) | ASTM (A36) | ASTM (A123) |
| U.K. Standard | BS4592 | BS4360 (43A) | BS729 |
| Australia Standard | AS1657 | AS3679 | AS1650 |
| Deutsche Standard | DIN24537 | DIN17100-80 | DIN50976 |
