Szczegóły Produktu:
Zapłata:
|
| Tworzywo: | Stal manganu | Średnica drutu: | 6,0 mm |
|---|---|---|---|
| Kształt otworu: | Prostokąt | Typ tkania: | Zwykły splot |
| Technik: | Tkana siatka | Wytrzymałość na rozciąganie: | 800 - 1000 MPa |
| E-mail: | devin@industrialmetalmesh.com | WhatsApp: | +8615369013183 |
| Podkreślić: | stainless steel quarry screen mesh,square woven wire mesh,metal vibrating screen mesh |
||

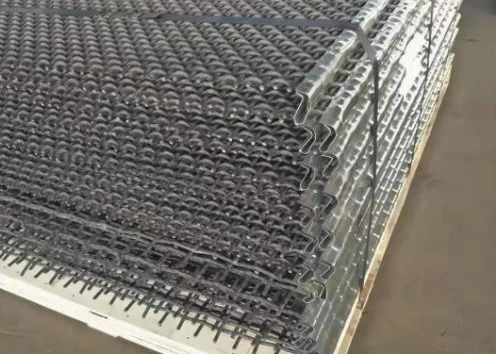

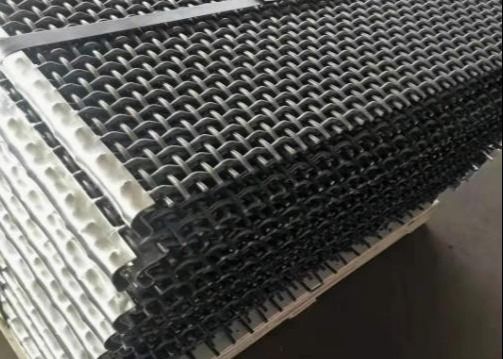

Square Metal Woven Wire Mesh Stainless Steel Quarry Crusher Vibrating Screen Mesh
Our premium square metal woven wire mesh is engineered for extreme quarry environments. Crafted from high-grade stainless steel, it delivers unmatched durability against abrasion, impact, and corrosion. This robust mesh is specifically designed for quarry crusher discharge and vibrating screen applications, handling aggressive materials like granite, basalt, and gravel. The precision-woven mesh ensures accurate particle sizing and high throughput efficiency. Its rigid square openings resist blinding and pegging, while the stainless steel construction minimizes downtime and replacement costs. Ideal for primary screening after crushers or final aggregate classification, this vibrating screen mesh offers superior longevity and stable performance in harsh processing conditions. Upgrade your screening efficiency with industrial-grade reliability.
Aperture
| Aperture Square Weave |
Light duty Wire Dia kg/m²OA% |
Medium Wire Dia kg/m OA% |
Heavy Duty Wire Dia kg/m²OA% |
||||||
| 2.00 | 1.37 | 7.1 | 35 | ||||||
| 3.15 | 2.00 | 9.9 | 37 | 2.50 | 14.1 | 31 | |||
| 4.0 | 2.00 | 8.50 | 44 | 2.50 | 12.2 | 38 | 3.05 | 16.8 | 32 |
| 5.0 | 2.00 | 7.80 | 51 | 2.50 | 16.6 | 44 | 3.05 | 14.7 | 38 |
| 5.6 | 2.50 | 9.80 | 48 | 3.05 | 13.7 | 41 | 4.00 | 21.2 | 34 |
| 6.35 | 2.50 | 8.89 | 51 | 3.05 | 12.6 | 46 | 4.00 | 19.6 | 38 |
| 6.8 | 2.50 | 9.00 | 51 | 3.05 | 10.0 | 44 | 4.00 | 19.7 | 37 |
| 7.1 | 2.50 | 8.80 | 55 | 3.05 | 11.9 | 48 | 4.00 | 18.3 | 41 |
| 8 | 2.50 | 10.80 | 54 | 4.00 | 16.9 | 44 | 5.00 | 24.4 | 38 |
| 9 | 3.05 | 9.80 | 55 | 4.00 | 15.6 | 48 | 5.00 | 22.7 | 44 |
| 10 | 3.05 | 9.10 | 58 | 4.00 | 14.5 | 51 | 5.00 | 21.2 | 44 |
| 11.2 | 3.05 | 10.40 | 54 | 5.00 | 19.6 | 48 | 5.60 | 28.6 | 44 |
| 12.5 | 4.00 | 12.30 | 57 | 5.00 | 18.1 | 51 | 5.60 | 20.0 | 47 |
| 14 | 4.00 | 16.70 | 54 | 5.00 | 20.0 | 51 | 6.80 | 24.6 | 48 |
| 16 | 5.00 | 15.10 | 58 | 5.60 | 19.5 | 56 | 6.80 | 22.6 | 51 |
| 18 | 5.00 | 14.50 | 58 | 6.80 | 20.7 | 55 | 7.10 | 25.0 | 51 |
| 20 | 5.60 | 14.00 | 61 | 6.80 | 19.2 | 58 | 7.10 | 24.0 | 54 |
| 22 | 5.60 | 17.60 | 61 | 7.10 | 21.5 | 57 | 8.00 | 26.7 | 54 |
| 25 | 6.80 | 16.10 | 64 | 7.10 | 20..1 | 60 | 8.00 | 24.6 | 57 |
| 28 | 7.00 | 14.70 | 63 | 8.00 | 19.0 | 61 | 9.00 | 27.8 | 57 |
| 32 | 8.00 | 20.60 | 64 | 9.00 | 26.0 | 60 | 10.00 | 30.4 | 58 |
| 38 | 8.00 | 18.70 | 67 | 9.00 | 28.1 | 64 | 10.00 | 27.9 | 61 |
| 40 | 9.00 | 21.00 | 67 | 10.00 | 25.4 | 64 | 11.20 | 31.1 | 61 |
| 45 | 9.00 | 19.50 | 69 | 10.00 | 23.4 | 67 | 11.20 | 28.4 | 64 |
| 50 | 10.00 | 23.20 | 69 | 11.20 | 26.0 | 67 | 12.50 | 31.8 | 64 |
| 56 | 10.00 | 19.20 | 72 | 11.20 | 28.7 | 69 | 12.50 | 29.0 | 67 |
| 63 | 10.00 | 17.40 | 75 | 11.20 | 24.5 | 72 | 12.50 | 25.1 | 70 |
| 76.2 | 10.00 | 14.80 | 78 | 11.20 | 16.0 | 75 | 12.50 | 20.0 | 73 |
| 80 | 10.00 | 16.00 | 79 | 11.20 | 17.5 | 72 | 12.50 | 21.5 | 75 |
| 90 | 10.00 | 14.00 | 81 | 11.20 | 15.7 | 79 | 12.70 | 19.4 | 77 |
| 100 | 10.00 | 10.00 | 82 | 11.20 | 14.3 | 81 | 12.70 | 17.6 | 79 |
Wear Resistance
Manganese steel mesh exhibits excellentwear resistance due to the characteristicsof its material. lt can withstand friction andimpact from materials, maintaining screen-ing efficiency for extended periods.
High Strength
High manganese steel possesses highhardness and strength, enabling the meshto withstand significant mechanical stressand vibrations without deformation ordamage.
High Strength
High manganese steel possesses highhardness and strength, enabling the meshto withstand significant mechanical stressand vibrations without deformation ordamage.
Customizability
Depending on specific screening needs,manganese steel mesh can be customizedinto various specifications, sizes, andshapes to meet the requirements of differ-ent working scenarios.
